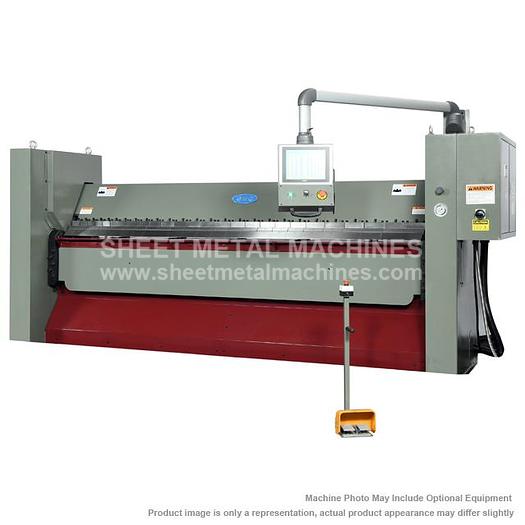

GMC 10' x 10 ga. Hydraulic Box & Pan Brake HBB-1010 with NC Control

  • ISO 9001 certified
  • Meet OSHA and CE safety standard
  • 48” NC table back gauge with fingers
  • Max. 16 bends per program
  • Up to 100 Program Storage
  • Programmable Angle/ Angle Correct
  • NC ram height control for open hemming
  • Hardened fingers and table
  • Germany Rexroth hydraulic system
  • Yaskawa Servo motors and Drives
  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerGMC Machine Tools
Stock NumberHBB-1010NC
Max. Bending Length10'
Capacity Mild Steel10 Ga.
Capacity Stainless Steel12 Ga.
Bend Angle Degree, programmable135°
Max Box Depth6"
Large Beam Opening / Clamping Opening3"
Beam front/back adjustment1"
Min. Reverse Bend1"
Max. Table Back Gauge Distance48-3/8"
Max. Table Back Gauge Distance1/4"
Back Gauge Repeatability0.0039"
Back Gauge Table height35-3/4"
Assorted fingers3"/4"/5"/6"
Hydraulic oil tank capacity25 gal.
Main Motor10 HP
Servo motor for back gauge1 HP
Overall Dimensions175" x 93" x 89"
Mach Weight8,850 lbs.
