Description

Please note: many products ship straight from manufacturer

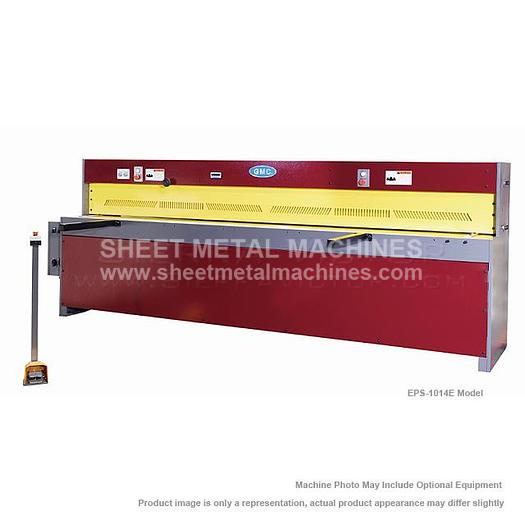

GMC 10' x 14 ga. Electrical Power Shear EPS-1014M

  • ISO 9001 certified
  • American design and Taiwan quality machine
  • With material front out tray
  • HD all steel construction for maximum rigidity
  • Precision driven gearbox
  • Full length 30 strokes per minute
  • 60” long squaring arm with inch / mm scale
  • spring hold-downs
  • high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
  • 2-edge indexable upper blade and 4-edge indexable bottom blade
  • Full length with full view finger guard
  • Front supports and (2) side gauges
  • Safety type foot pedal control
  • Jog, single continuous auto operation modes


STANDARD EQUIPMENT:

  • 26” manual back gauge with one side handwheel
  • 60” long squaring arm with inch / mm scale, mounted on right side of the table
  • 2 each 24” front support arms
  • full length finger guard
  • Removable safety foot pedal control
  • One set of upper & lower blades


OPTIONAL ITEMS:

  • Safety fence for enclosure of the back side of the machine: $1,150.00


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerGMC Machine Tools
ModelEPS-1014M
ConditionNew
Stock NumberEPS-1014M
Cutting Capacity: Mild Steel10' x 14 Ga.
Cutting Capacity: Stainless Steel10' x 18 Ga.
Blade Length10' 1"
Strokes Per Minute26
Worktable Height30-1/2"
Front Support Arm24"
Back Gauge26" Manual back gauge
Blade Rake Angle2.0 degree
Main Motor10 HP, 220V/440V, 3ph
Machine Weight7,280 lbs.
Machine Dimensions, LWH147" x 57" x 53"
