POWERMATIC 54HH Jointer with Helical Cutterhead 1HP 1PH 115V 100 Year Limited Edition 1791317KG

POWERMATIC 54HH Jointer with Helical Cutterhead 1HP 1PH 115V 100 Year Limited Edition 1791317KG

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

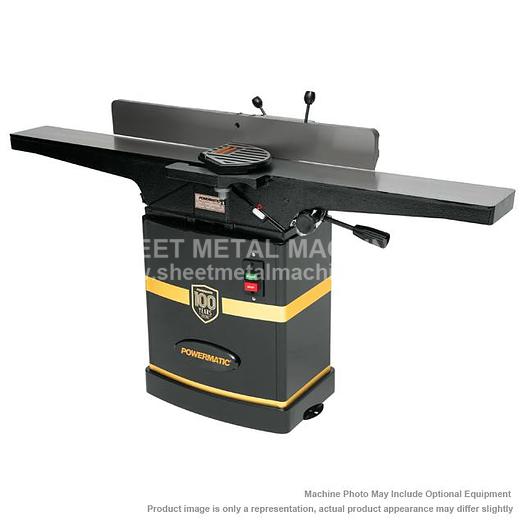

POWERMATIC 54HH 6" Jointer with Helical Cutterhead 1HP 1PH 115V 100 Year Limited Edition 1791317KG

  • The PM54HH Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
  • 66" long adjustable infeed and outfeed tables provide more working surface
  • Enlarged sheet metal stand provides a sturdy base
  • Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
  • Fence controls are center-mounted for convenience
  • Fine/quick adjustment lever on infeed table for precision cuts
  • Helical cutterhead with 40 four sided carbide inserts provides smoother, quieter cutting and finer finish than conventional systems
  • Push button switch is lockable to prevent accidental starting



Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)

Specifications

ManufacturerPowermatic
Model54HH
ConditionNew
Stock Number1791317KG
Type of CutterheadHelical Head
Style (Type)Floorstanding Model
Number of Knives40
Cutterhead Speed (RPM)6000
Motor Power (HP)1
Dust Port Outside Diameter (In.)4
Motor Phase1
Motor Voltage (V.)115
Prewired Voltage (V.)115
