POWERMATIC 15HH 3HP 1PH 230V Deluxe Planer 100 Year Limited Edition 1791213G

POWERMATIC 15HH 3HP 1PH 230V Deluxe Planer 100 Year Limited Edition 1791213G

$3,299.99 BONUS FREE ACCESSORIES: Anti-Fatigue Mat and Digital Readout

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

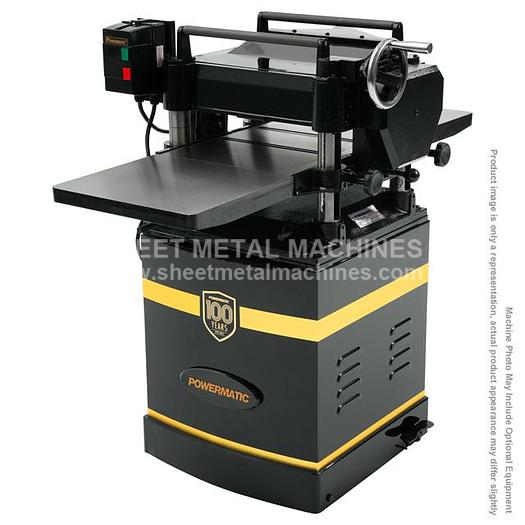

POWERMATIC 15HH 15" Deluxe Planer 3HP 1PH 230V 100 Year Limited Edition 1791213G

  • Leonard F. Smith Sr. built the first Powermatic planer in McMinnville, TN in 1921. A century of innovation has led to the Powermatic 15 inch helical head planer. The helical cutterhead on the 15HH Planer provides smoother cutting and a finer finish than conventional knives, and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4" dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop. Powermatic is proud to offer a limited edition 100 year anniversary model of the 15HH Planer as a modern nod to the first Powermatic machine. Included with the 15HH 100 year anniversary model is an anti-fatigue mat and digital read out accessory.
  • Angled dust chute with 4" port positions collection hose away from the work area while providing efficient chip and dust collection
  • Large cast iron handwheel positions table quickly and easily
  • Large, precision ground cast iron table and extensions provide maximum workpiece support
  • Lockable built-in caster system allows for mobility in the shop
  • Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8" maximum depth of cut and trouble free operation
  • Steel top-mounted return rollers speed repetitive cuts
  • The helical cutterhead with 74 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
  • Three V-belts transfer maximum power to the cutterhead
  • Two speed gearbox features automatic chain tensioner



Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)

Specifications

ManufacturerPowermatic
Model15HH
ConditionNew
Stock Number1791213G
Type of CutterheadHelical Head
Style (Type)Floorstanding Model
Feed Rate (FPM)16/20
Maximum Depth of Cut (In.)1/8
Number of Knives74
Maximum Full Width Depth of Cut (In.)1/8
Maximum Planing Width (In.)14-7/8
Cutterhead Diameter (In.)2-7/8
Maximum Planing Thickness (In.)6
Cutterhead Speed (RPM)4500
Dust Port Outside Diameter (In.)4
Motor3 HP
Motor Phase1
Motor Voltage230V
Dimensions ( L / W / H ) (in.)48 x 28 x 43-1/2
Net Weight ( lb. )502
