POWERMATIC PWBS-14CS Bandsaw with Stand 100 Year Limited Edition 1791216KG

POWERMATIC PWBS-14CS Bandsaw with Stand 100 Year Limited Edition 1791216KG

$1,399.99 BONUS FREE ACCESSORY - Custom Mobile Base

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

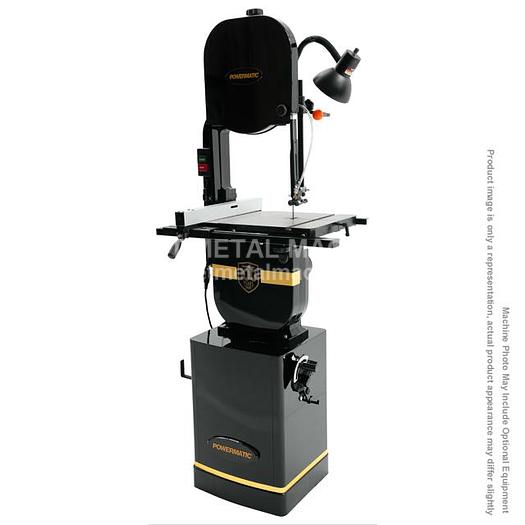

POWERMATIC PWBS-14CS 14" Bandsaw with Stand 100 Year Limited Edition 1791216KG

  • The PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15 x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
  • 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
  • CARTER quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use.
  • Chip blower ensures a clean, visible cut line
  • Easy to read tensioning gauge settings indicated in "blade width" increments
  • Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment
  • Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
  • Upper and lower dual ball bearing guides for accurate cuts


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)

Specifications

ManufacturerPowermatic
ModelPWBS-14CS
ConditionNew
Stock Number1791216KG
Band Saw Size/Wheel Diameter (In.)14
Blade Length (In.)93-1/2
Minimum Saw Blade Width (In.)1/8
Blade Speed (SFPM)3000
Table Size (L x W) (In.)15 x 15
Blade Wheel Diameter (In.)14
Overall Height (In.)68
Motor Power (HP)1.5
Table Height from Floor (In.)44
Table Tilt (Deg.)45 Right / 10 Left
Dust Collection Minimum CFM Required (CFM)350
Dust Port Outside Diameter (In.)4
Shipping Weight (Lbs.)266
Motor Phase1
Motor Voltage (V.)115
Prewired Voltage (V.)115
Overall Dimensions (L x W x H) (In.)20 x 34 x 68
Recommended Circuit Size (Amps.)30
Net Weight (Lbs.)250
Gross Weight (Lbs)266
