Used GMC Deluxe Hydraulic Shear HS-0610MD
Sale

Sold

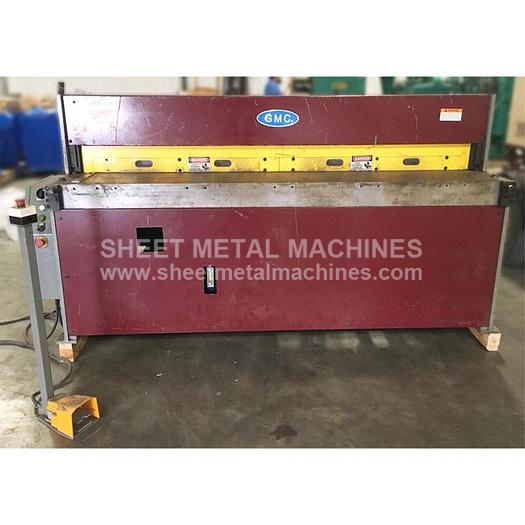

Used GMC Deluxe Hydraulic Shear HS-0610MD
$8,950
Description
Please note: many products ship straight from manufacturer Used GMC 6' x 10 gauge Deluxe Hydraulic Shear HS-0610MD
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Work light
- spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- *Can be inspected under power
- *FOB GA
- EQUIPPED WITH:
- Squaring arm
- 2 front support arms
- 24" manual backgauge
Specifications are subject to change without notice.
ITEM: 6’ x 10 Gauge Hydraulic Shear
MANUFACTURER: GMC
MODEL: HS-0610MD
YEAR: NEW IN 2017
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
Specifications
Manufacturer | GMC Machine Tools |
Model | HS-0610MD |
Condition | Used |
Stock Number | HS-0610MD |
Cutting capacity: mild steel | 6' x 10 Ga |
Cutting capacity: stainless steel | 6' x 14 Ga |
Blade length | 6' 6" |
Strokes per minute adjustable | 16-20 |
Worktable height | 30-1/2" |
Throat Depth | 16" |
Front support arm length | 24" |
Manual Back Gauge | 25" |
Top Blade Rake Angle | 1.5 degree |
Hydraulic Oil Tank Capacity | 20 Gal. |
Main motor | 5 HP, 220V, 3 PH |
Machine Dimensions | 98" x 35" x 52" |
Net Weight | 4,150 lbs |
