PRIMELINE Electro-Mechanical Power Shear M1014-FRP

PRIMELINE Electro-Mechanical Power Shear M1014-FRP

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

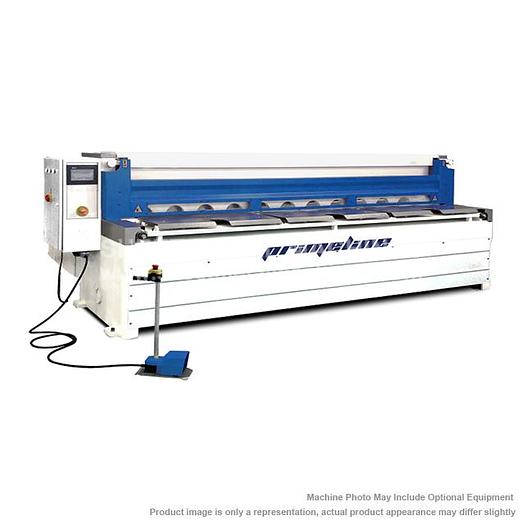

PRIMELINE 10' x 14 gauge Electro-Mechanical Power Shear M1014-FRP

  • Mechanical Power Squaring Shear with Manual Front-Operated Backgauge,
  • Pneumatic Sheet Support Device with Front Return and Material Cart
  • Go-To Power Back Gauge
  • Pneumatic Rear Sheet Support Device with Front Return (returns cut part to front)
  • Material Table/Cart to catch cut parts returned to front of machine
  • Retractable Front Support Arm System
  • Set of high-carbon high-chrome blades
  • Solid, mechanical finger guard/holddown with non-marking pad
  • All steel frame
  • All moving components in maintenance-free bearings
  • 40" Squaring arm (at left)
  • Virtually noiseless geared brake-motor.
  • Low voltage at the controls.
  • Emergency stop palm button.
  • Single/inching stroke control
  • Movable electric foot control on a trailing lead
  • Operating manual and parts list
  • Electrics for 3/60/220/440.
  • PLEASE NOTE: Machine is single voltage, currently wired for 220 Volt, 3 Phase. Should you require a different voltage, the customer would be responsible for making the changes. We recommend that a licensed electrician be consulted and make any changes necessary. These would include the addition of any transformers or changes to the electrical system related to the main motor.



Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerPRIMELINE
ModelPRIMELINE Electro-Mechanical Power Shear M1014-FRP
ConditionNew
Stock NumberM1014-FRP
Capacity - Mild Steel10' x 14 ga.
Capacity - Stainless Steel10' x 16 ga.
Strokes per minute35
Motor4.5 HP
Back gauge range39-1/2"
Approximate Dimensions L x W x H 142” x 71” x 52”
Electrics3/60/220V or 440V (specify)
Net weight - approximately7,300 lbs.
