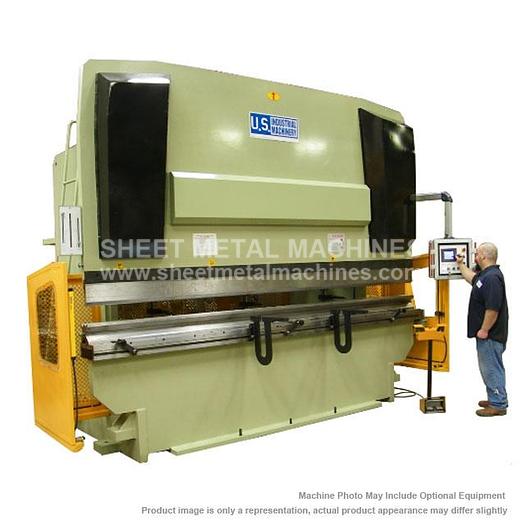

U.S. INDUSTRIAL 440 Ton x 13' CNC Hydraulic Press Brake USHB440-13

  • Ram Deflection Adjustment
  • Mechanical Ram Depth Control
  • Massive Torsion Bar for Parallelism
  • Forged Heavy Duty Cylinder and Cylinder Body
  • Three Speed Ram
  • Rapid Approach, Bending Cycle and Rapid Retreat
  • Bottom Time Delay
  • All Steel Construction
  • Inching, Single Cycle and Continuous Operation
  • Ram takes special, heavy duty tang
  • Solid Ram Tool Clamps, 5 sections on Ram
  • Bed has slot
  • Bed also holds tooling with capture clamps
  • Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel *SPECIAL NOTE* The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose.
  • THERE IS NO WARRANTY ON THESE ITEMS.
  • *For non-CNC or other configurations and options, please call to check delivery.


OPTIONAL ITEMS:

  • Fiessler Akas II Laser Guarding
  • Pilz PSENvip LED Safety Guarding
  • Third Axis (Back Gauge Height)
  • CNC Controlled Mechanical Auto Crown
  • High Speed Servo Back Gauge
  • Training in our Memphis, TN Facility
  • Training at customer site, less than 300 miles from Memphis
  • Training at customer site, more than 300 miles from Memphis
  • Training outside continental USA


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSHB440-13
ConditionNew
Stock NumberUSHB440-13
Working pressure440 Tons
Length of working table157.4"
Distance between housings120.8"
Throat depth17.4"
Stroke adjustment of ram5.9"
Ram travel11.8"
Open height30.3"
Bed Height40"
Backgauge Travel24"
Motor40 HP
Dimensions180" x 87" x 150"
Weight (approx.)52,910 lbs.
