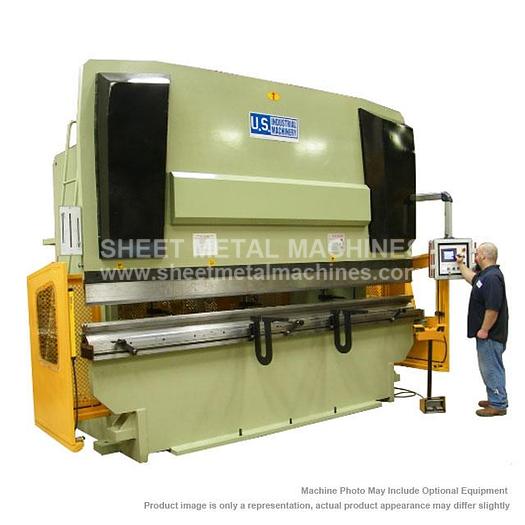

U.S. INDUSTRIAL CNC Hydraulic Press Brake USHB390-13

U.S. INDUSTRIAL CNC Hydraulic Press Brake USHB390-13

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

*Due to weekly changes in steel costs all machines are priced at time of quote request

U.S. INDUSTRIAL 390 Ton x 13' CNC Hydraulic Press Brake USHB390-13

  • Setting for ram speed slowdown and return position
  • Forged Heavy Duty Cylinder and Cylinder Body
  • Rapid Approach, Bending Cycle and Rapid Retreat
  • All Steel Construction
  • Ram takes special, heavy duty safety tang
  • Massive Torsion Bar for Parallelism
  • Three Speed Ram
  • Bottom Time Delay
  • Inching, Single Cycle and Auto Run
  • Bed Slot and die clamps
  • Free Gooseneck Punch and multi-opening Die for up to 90° forming up to 10-gauge mild steel. *Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. *There is NO warranty on these items.
  • *For non-CNC or other configurations and options, please call to check delivery.


EQUIPPED WITH:

  • CNC 2-Axis Color Graphic Control: Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code And Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup
  • Sick model 4000 light curtain system
  • Third Axis Back Gauge Height
  • CNC Controlled Mechanical Auto Crown


OPTIONAL ITEMS:

  • Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4)
  • Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4)
  • Add Third Axis (Back Gauge Height controlled from operator panel.)
  • CNC Controlled Mechanical Auto Crown
  • High Speed Servo Back Gauge
  • Upgrade to Cam-Lever Quick Action Ram Clamps
  • Training in our Memphis, TN Facility
  • Training at customer site, more than 300 miles from Memphis
  • Training at customer site, more than 300 miles from Memphis (If outside continental USA, please call for quote.)


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSHB390-13
ConditionNew
Stock NumberUSHB390-13
Working pressure390 Tons
Length of working table157.4"
Distance between housings120.8"
Throat depth15.7"
Stroke adjustment of ram3.93"
Ram travel9.84"
Open height24.8"
Bed Height40"
Backgauge Travel24"
Motor30 HP, 220 or 440 Volts, 3 ph
Dimensions180" x 87" x 130"
Weight (approx.)51,808 lbs.
