U.S. INDUSTRIAL Hydraulic Press Brake with Front Operated Power Backgauge and Power Ram Adjust USHB250-13HM

U.S. INDUSTRIAL Hydraulic Press Brake with Front Operated Power Backgauge and Power Ram Adjust USHB250-13HM
Contact us for price
Description
Please note: many products ship straight from manufacturer

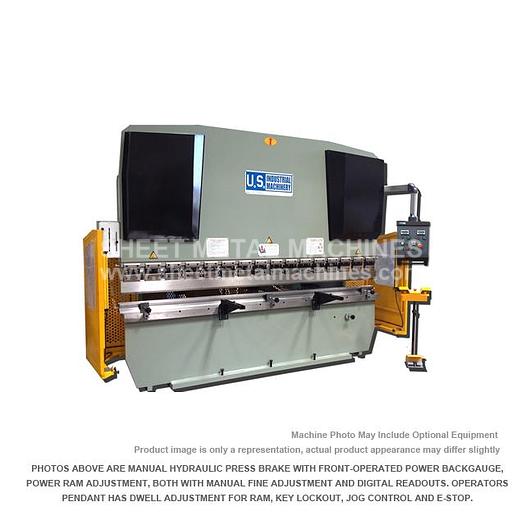

U.S. INDUSTRIAL 250 Ton x 13' Hydraulic Press Brake with Front Operated Power Backgauge and Power Ram Adjust USHB250-13HM
- Power Front Operated Back Gauge, motorized with fine adjustment handwheel
- Power Ram Depth Control, motorized with fine adjustment handwheel
- Digital Displays for backgauge position and ram position
- All Steel Construction
- Sick 4000 Light Curtain
- Ram accepts standard American Tang tooling, 1/2” x 5/8”
- Space between Ram Tool Clamps allows for deep box bending
- Bed has slot for standard American Tang tooling
- Bed also has capture clamps for tooling without tang
- Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel (Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.)
EQUIPPED WITH:
- Sick 4000 Light Curtain
- Manual Bed Crowning Device
- NOTE: These items are STANDARD and included in price
OPTIONAL ITEMS:
- Fiessler Akas II Laser Guarding
- Pilz PSENvip LED Safety Guarding
- Training in our Memphis, TN Facility
- Training at customer site, less than 300 miles from Memphis
- Training at customer site, more than 300 miles from Memphis
- Training outside continental USA
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | US Industrial |
Model | USHB250-13HM |
Condition | New |
Stock Number | USHB250-13HM |
Working pressure | 250 Tons |
Length of working table | 157.4" |
Distance between housings | 124" |
Throat depth | 15.7" |
Stroke adjustment of ram | 3.14" |
Ram travel | 7.8" |
Open height | 22" |
Rapid Ram Travel Speed | 2.4" / sec |
Rapid Ram Retreat Speed | 2.0" / sec |
Backgauge Travel | 24" |
Pressing Speed | Dependent on Tool Load |
Hydraulic oil capacity | 108 gal. |
Motor | 25 HP |
Dimensions | 179" x 75" x 108" |
Weight (approx.) | 38,683 lbs. |
