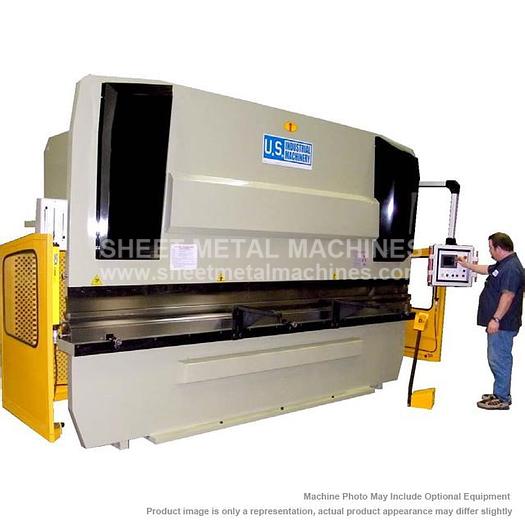

U.S. INDUSTRIAL CNC Hydraulic Press Brake USHB250-13

U.S. INDUSTRIAL CNC Hydraulic Press Brake USHB250-13

$133,495 FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

*Due to weekly changes in steel costs all machines are priced at time of quote request

U.S. INDUSTRIAL 250 Ton x 13' CNC Hydraulic Press Brake USHB250-13

  • Ram Deflection Adjustment
  • Massive Torsion Bar for Parallelism
  • Three Speed Ram
  • Bottom Time Delay
  • Inching, Single Cycle and Auto Run
  • Setting for ram speed slowdown and rapid return position
  • Forged Heavy Duty Cylinder and Cylinder Body
  • Rapid Approach, Bending Cycle and Rapid Retreat
  • All Steel Construction
  • Bed tools are held with standard slot for ½” x 5/8” tang w/set screws, plus die clamps are included
  • Ram takes standard American Tang Tooling (1/2” x 5/8”) and American Safety Tang Tooling, and Z1
  • Space between Ram Tool Clamps allows for deep box bending
  • Free Gooseneck Punch and multi-opening Die for up to 90° forming up to 10-gauge mild steel. *Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. *There is no warranty on this tooling.


EQUIPPED WITH:

  • CNC 2-Axis Color Graphic Computer Control: Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code and Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup
  • Sick de Tec 4 light curtain system
  • Third Axis (Back gauge Height controlled from operator panel)
  • CNC Controlled Mechanical Auto Crown
  • NOTE: These items are STANDARD and included in price


OPTIONAL ITEMS:

  • Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4)
  • Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4)
  • Add Third Axis (Back Gauge Height controlled from operator panel.)
  • CNC Controlled Mechanical Auto Crown
  • High Speed Servo Back Gauge
  • Upgrade to Cam-Lever Quick Action Ram Clamps
  • Training in our Memphis, TN Facility
  • Training at customer site, more than 300 miles from Memphis
  • Training at customer site, more than 300 miles from Memphis (If outside continental USA, please call for quote.)


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSHB250-13
ConditionNew
Stock NumberUSHB250-13
Working pressure250 Tons
Length of working table157.4"
Distance between housings124"
Throat depth15.7"
Stroke adjustment of ram3.14"
Ram travel7.8"
Open height22"
Rapid Ram Travel Speed2.4" / sec
Rapid Ram Retreat Speed2.0" / sec
Backgauge Travel24"
Strokes per Minute5
Pressing SpeedDependent on Tool Load
Hydraulic oil capacity108 gal.
Motor25 HP, 220 or 440V, 3 ph
Dimensions179" x 75" x 108"
Weight (approx.)38,683 lbs.
