U.S. INDUSTRIAL USHB200-13HM Hydraulic Press Brake with Front Operated Power Backgauge and Power Ram Adjust

U.S. INDUSTRIAL USHB200-13HM Hydraulic Press Brake with Front Operated Power Backgauge and Power Ram Adjust

$81,975 Call for Freight Specials

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

*Due to weekly changes in steel costs all machines are priced at time of quote request

U.S. INDUSTRIAL 13 ft x 200 Ton Hydraulic Press Brake with Front Operated Power Backgauge and Power Ram Adjust USHB200-13HM

  • Power Front Operated Back Gauge, motorized with fine adjustment handwheel
  • Digital Display shows Backguage position in .001”
  • Power Ram Depth Control, motorized with fine adjustment handwheel
  • Digital Displays shows Ram position in .001”
  • Ram Deflection Adjustment
  • Massive Torsion Bar for Parallelism
  • Three Speed Ram
  • Bottom Time Delay
  • Inching and Single Cycle
  • Setting for ram speed slowdown and return position
  • Forged Heavy Duty Cylinder and Body
  • Rapid Approach, Bending and Rapid Retreat
  • All Steel Construction
  • Bed tools are held with standard slot for ½” x 5/8” tang w/set screws, plus die clamps are included
  • Ram takes standard American Tang Tooling (1/2” x 5/8”) and American Safety Tang Tooling, and Z1
  • Space between Ram Tool Clamps allows for deep box bending
  • FRONT OPERATED POWER BACKGAUGE, POWER RAM ADJUST, MANUAL FINE ADJUST HANDWHEELS and DIGITAL POSTION DISPLAYS

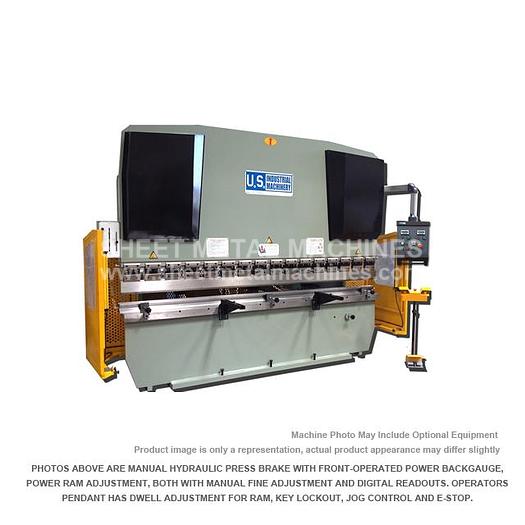

  • *Photos shown are manual Hydraulic Press Brake with front-operated power backgauge, power ram adjustment, both with manual fine adjustment and digital readouts. Operator’s pendant has dwell adjustment for ram, key lockout, jog control and E-stop.
  • Free Gooseneck Punch and multi-opening Die for up to 90° forming up to 10-gauge mild steel. *Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they to want use them for a particular purpose. *There is no warranty on this tooling.


EQUIPPED WITH:

  • Sick deTec 4 Light Curtain
  • Manual (hand-crank) Mechanical Bed Crowning Device with counter


OPTIONAL ITEMS:

  • Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4)
  • Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4)
  • Upgrade to Cam-Lever Quick Action Ram Clamps
  • Training in our Memphis, TN Showroom
  • Training at customer site, less than 300 miles from Memphis
  • Training at customer site, more than 300 miles from Memphis
  • Training outside continental USA


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSHB200-13HM
ConditionNew
Stock NumberUSHB200-13HM
Working pressure200 Tons
Length of working table157.4"
Distance between housings124"
Throat depth12.5"
Stroke adjustment of ram2.75"
Ram travel7.0"
Open height17.5"
Rapid Ram Travel Speed2.4" / sec
Rapid Ram Retreat Speed2.0" / sec
Backgauge Travel24"
Pressing SpeedDependent on Tool Load
Hydraulic oil capacity97 gal.
Motor 20 HP, 220 or 440V, 3 ph
Dimensions179" x 64" x 101"
Weight (approx.)28,660 lbs.
