U.S. INDUSTRIAL CNC Hydraulic Press Brake USHB155-10

U.S. INDUSTRIAL CNC Hydraulic Press Brake USHB155-10

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

*Due to weekly changes in steel costs all machines are priced at time of quote request

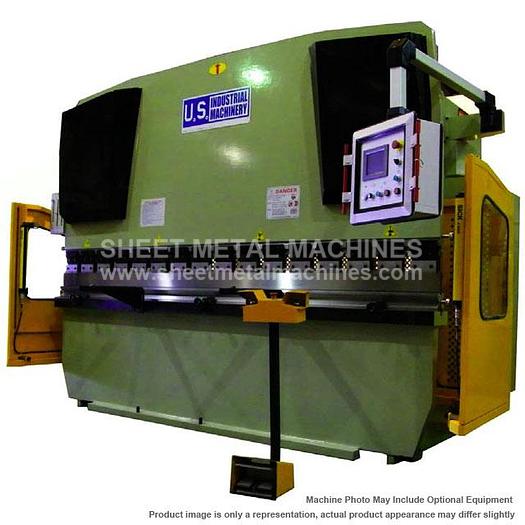

U.S. INDUSTRIAL 10' x 155 Ton CNC Hydraulic Press Brake USHB155-10

  • Ram Deflection Adjustment
  • Mechanical Ram Depth Control
  • Massive Torsion Bar for Parallelism
  • Forged Heavy Duty Cylinder and Cylinder Body
  • Three Speed Ram
  • Rapid Approach, Bending Cycle and Rapid Retreat
  • Bottom Time Delay
  • All Steel Construction
  • Inching, Single Cycle and Continuous Operation
  • Ram takes standard American Tang Tooling (1/2” x 5/8”)
  • Space between Ram Tool Clamps allows for deep box bending
  • Bed has slot for standard American tang tooling
  • Bed also holds tooling with capture clamps
  • Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel *SPECIAL NOTE* The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose.
  • THERE IS NO WARRANTY ON THESE ITEMS.
  • *For non-CNC or other configurations and options, please call to check delivery.


EQUIPPED WITH:

  • CNC 2-axis Color Graphic Computer Control
  • Sick model 4000 light curtain system
  • NOTE: These items are STANDARD and included in price



OPTIONAL ITEMS:

  • Fiessler Akas II Laser Guarding
  • Pilz PSENvip LED Safety Guarding
  • Third Axis (Back Gauge Height)
  • CNC Controlled Mechanical Auto Crown
  • High Speed Servo Back Gauge
  • Training in our Memphis, TN Facility
  • Training at customer site, less than 300 miles from Memphis
  • Training at customer site, more than 300 miles from Memphis
  • Training outside continental USA




Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSHB155-10
ConditionNew
Stock NumberUSHB155-10
Working pressure155 Tons
Length of working table125.9"
Distance between housings106.2"
Throat depth12.5"
Stroke adjustment of ram2.75"
Ram travel5.9"
Open height16.3"
Rapid Ram Travel Speed2.4" / sec
Rapid Ram Retreat Speed2.0" / sec
Backgauge Travel24"
Pressing SpeedDependent on Tool Load
Hydraulic oil capacity79 gal.
Motor15 HP
Dimensions148" x 64" x 101"
Weight (approx.)22,046 lbs.
