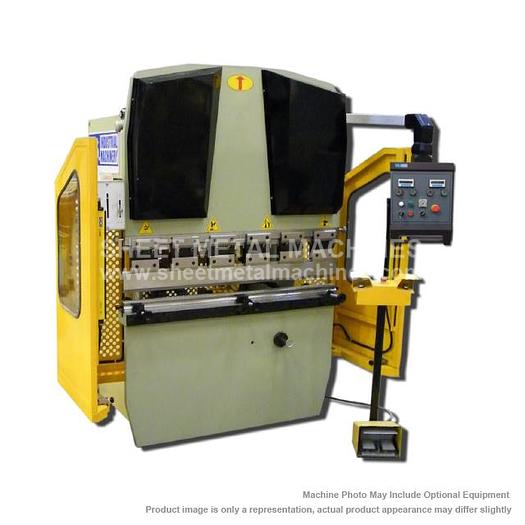

U.S. INDUSTRIAL Hydraulic Press Brake USHB22-4

U.S. INDUSTRIAL Hydraulic Press Brake USHB22-4

$20,343.54

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

U.S. INDUSTRIAL 4' x 22 Ton Hydraulic Press Brake USHB22-4

  • Power Front Operated Back Gauge, motorized with fine adjustment handwheel
  • Power Ram Depth Control, motorized with fine adjustment handwheel
  • Digital Displays for backgauge position and ram position
  • All Steel Construction
  • SICK deTec2 Core Light Curtain
  • Ram accepts standard American Tang tooling, 1/2” x 5/8”
  • Space between Ram Tool Clamps allows for deep box bending
  • Bed has slot for standard American Tang tooling
  • Bed also has capture clamps for tooling without tang
  • Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel *SPECIAL NOTE* The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. THERE IS NO WARRANTY ON THESE ITEMS.


OPTIONAL ITEMS: CALL FOR PRICE

  • 2-Axis CNC Back Gauge and Light Curtain Upgrade: Controls BOTH Bend Angle and Backgauge Position. Comes with 6” Color LCD touch screen. Code and Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a Tool library, Metric/Inch switchable, Auto bend sequence, Auto retract of backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup
  • CNC 2-Axis Color Graphic Control: Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code And Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
  • Training in our Memphis, TN Showroom
  • Training at customer site, less than 300 miles from Memphis
  • Training at customer site, more than 300 miles from Memphis
  • Training outside continental USA



Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerUS Industrial
ModelUSHB22-4
ConditionNew
Stock NumberUSHB22-4
Working pressure22 Tons
Length of working table51.9"
Distance between housings40.1"
Throat depth7.8"
Stroke adjustment of ram2.75"
Ram travel3.14"
Open height9.64"
Rapid Ram Travel Speed2.4" / sec
Rapid Ram Retreat Speed2.0" / sec
Pressing SpeedDependent on Tool Load
Hydraulic oil capacity21 gal.
Motor7.5 HP
Dimensions73" x 56" x 77"
Weight (approx.)4,400 lbs
