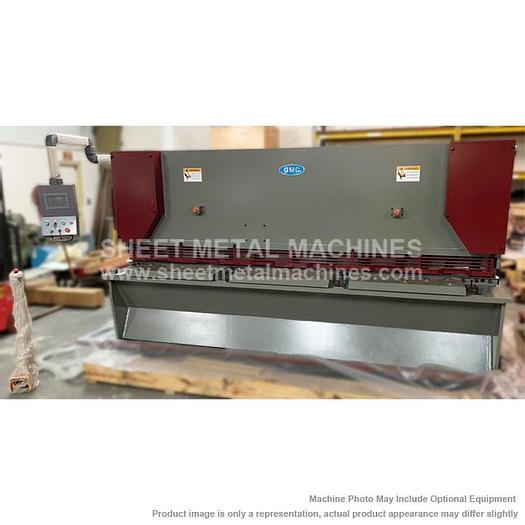

GMC Heavy Duty Hydraulic Shear HS-1025CNC

GMC Heavy Duty Hydraulic Shear HS-1025CNC

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

GMC 10' x 1/4" Heavy Duty Hydraulic Shear HS-1025CNC

  • ISO 9001 certified
  • ESA 625 CNC Control - stores thousands of programs, 30 steps per programs
  • 36” CNC back gauge w/touch screen, power rake, power gaping
  • CE standard & Siemens electric control system
  • Meet OSHA safety standard code
  • Shadow line for accurate straight cutting
  • Adjustable cutting length and stroke
  • Well balanced and sturdy all steel machine frame
  • German made Hydraulic logic system centrally located and quiet
  • Hydraulic hold-downs with anti-mar neoprene
  • Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length viewable safety finger guard to protect operator from cutting hazard
  • Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
  • Hydraulic, electrical overload protection
  • Compact operator control panel
  • All motors are overload protected & low voltage control system
  • Jog or continuous auto cycle cutting operation modes


EQUIPPED WITH:

  • 36” CNC back gauge w/touch screen, power rake, power gaping
  • ESA 625 CNC Control - stores thousands of programs, 30 steps per programs
  • 1 each 40” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA)
  • Shadow line for accurate straight cutting
  • Material support and drop back chute
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 3 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerGMC Machine Tools
ModelHS-1025CNC
ConditionNew
Stock NumberHS-1025CNC
Cutting capacity: mild steel, stainless steel10' x 1/4", 10' x .125"
Blade length10' 6"
Strokes per minute10-12
Throat depth20"
Worktable height39"
Front support arm24"
CNC Back gauge36” CNC Back gauge
Blade rake angle0.5°- 2.5°
Oil tank cap.50 Gal.
Main motor15 HP, 220V/440V, 3 phase
Power B.G. motor2 HP, 220V/440V, 3 phase
Machine weight17,850 lbs
Machine dimensions157” x 106” x 75”
