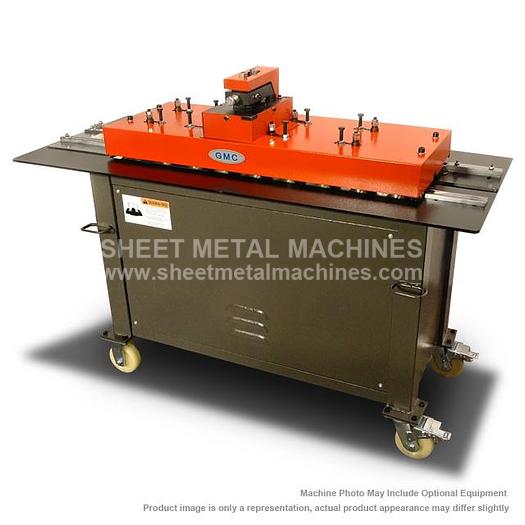

GMC Pittsburgh Locking Forming Machine w/S & Drive Cleat PL-18E

GMC Pittsburgh Locking Forming Machine w/S & Drive Cleat PL-18E

$6,850

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

GMC 26-18 Ga. Pittsburgh Locking Forming Machine w/S & Drive Cleat PL-18E

  • ISO 9001 certified
  • 4HP Heavy Duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity
  • It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat,
  • Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
  • Heavy welded all steel construction for maximum rigidity
  • ACME side can be operated at same time

Capacity:

Pittsburgh lock

T-connect lock

Right angle lock

Drive cleat lock

Double seam lock

Power flange

26 Ga. to 18Ga.

26 Ga. to 20Ga.

26 Ga. to 20Ga.

26 Ga. to 22Ga.

26 Ga. to 18Ga.

26 Ga. to 18Ga.

26Ga. To 20Ga.


STANDARD ITEMS:

  • Standard Pittsburgh Attachment # PA-18E, installed
  • Slip & Drive Roll (S&Drive)# SDR-18E , installed
  • Drive Cleat Roll # DCR-18E, installed
  • Double Seam Roll # DSR-18E, installed
  • Power Flanger # PF-18E, installed


OPTIONAL ITEMS:

  • RAR-18E: Right Angle Roll set : 1/4”, 3/8” & 1/2”: $795


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerGMC Machine Tools
ModelPL-18E
ConditionNew
Stock NumberPL-18E
Main Motor4 HP, 220V, 3PH
Feeding Speed23 FPM
Depth of Pocket1/2"
Weight Approx998 lbs.
Machine Dimensions60" x 26" x 46"
CapacitySEE DESCRIPTION
