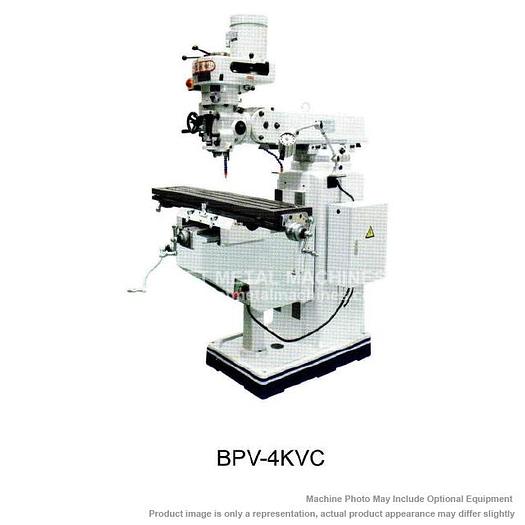

BIRMINGHAM Vertical Knee Mill NT40 Taper, 5HP, 220V/440V with Special Tool Package BPV-4KV-C

BIRMINGHAM Vertical Knee Mill NT40 Taper, 5HP, 220V/440V with Special Tool Package BPV-4KV-C

$10,867.50 LIMITED TIME ONLY!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

BIRMINGHAM 10" x 54" NT40 Taper, 5HP, 220V/440V with Special Tool Package BPV-4KV-C

  • Taiwan Head / China Body
  • SPECIAL PACKAGE INCLUDE ITEMS BELOW: UNIQ ( CHINA ) DRO 2 AXIS ONLY installed X 1 SET
  • PF150X POWER FEED ( TAIWAN ) X AXIS installed X 1 SET
  • AV-6 VISE X 1 PC
  • R8 COLLET ( 11 PCS ) X 1 PC
  • CK-58 ( 58 PCS ) X 1 BOX


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Show All

Specifications

ManufacturerBirmingham
ModelBPV-4KV-C
ConditionNew
Stock NumberBPV-4KV-C
Table Size 10" x 54" / 10" x 50"
Long Travel3-1/2" / 37-1/2"
Cross Travel16-1/2"
Vertical Travel16-1/2"
T-Slot No. and Size3 x 5/8"
Ram Travel18-1/2"
Distance from spindle nose to table surface0~16"
Spindle hole taperNT40
Spindle Travel5"
Spindle Speed(Variable) 65-3750 RPM
Auto quill feed(Three steps): 0.04mm (0.0015") / 0.08mm (0.003") / 0.15mm (0.006") inch/revolution
Spindle motor5 HP
Head Swivel90°
Head Tilting45°
Overall Dim. (LxWxH)60" x 61" x 82"
Gross Weight3,500 lbs.
