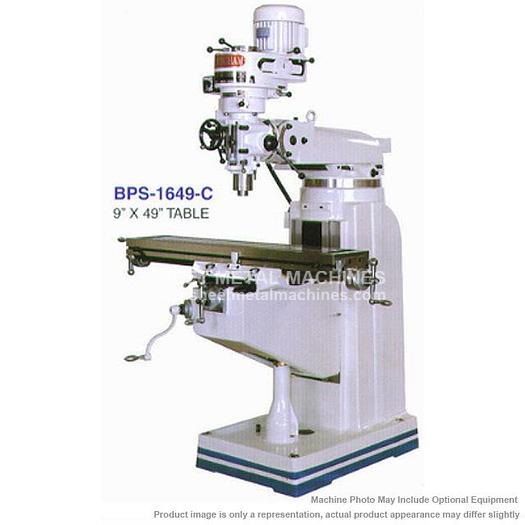

BIRMINGHAM Step Pulley Vertical Knee Mill 16 Speed, 3PH, 220V with Special Tool Package BPS-1649-C

BIRMINGHAM Step Pulley Vertical Knee Mill 16 Speed, 3PH, 220V with Special Tool Package BPS-1649-C

$6,440 LIMITED TIME ONLY!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

BIRMINGHAM 9" x 49" Step Pulley Vertical Knee Mill 16 Speed, 3PH, 220V with Special Tool Package BPS-1649-C

  • R8 Spindle
  • 9" x 49" Table
  • Step Pulley, 16 Speeds (8 speeds for 1Ø)
  • High Grade Cast Iron Frame
  • Dovetail Guideways
  • Ground Table T-slots
  • Hardened & Ground Ways
  • Hardened & Ground Table
  • Built-in Coolant Body
  • Tilting & Rotating Head
  • Chromed Ground Quill
  • Hand & Power spindle feeds


  • SPECIAL PACKAGE INCLUDE ITEMS BELOW: UNIQ ( CHINA ) DRO 2 AXIS ONLY installed X 1 SET
  • PF150X POWER FEED ( TAIWAN ) X AXIS installed X 1 SET
  • AV-6 VISE X 1 PC
  • R8 COLLET ( 11 PCS ) X 1 PC
  • CK-58 ( 58 PCS ) X 1 BOX


STANDARD EQUIPMENT:

  • Tool Box - 1 set
  • Front chip guard - 1 pc
  • Rear chip guard - 1 pc
  • Draw bar - 1 pc
  • One shot lube


OPTIONAL ITEMS - CALL FOR PRICE:

  • Coolant System
  • Power Feed for X, Y, Z
  • Halogen Work Light
  • Electric Control Box
  • Cutter Holder
  • Clamping Kit Set
  • Digital Readout
  • Base Coolant Drop Pan
  • Power Air Draw Bar unit
  • Vise
  • NMTB #30 Spindle



Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEARS - Parts

Specifications

ManufacturerBirmingham
ModelBPS-1649-C
ConditionNew
Stock NumberBPS-1649-C
Table Size9" x 49"
Table Load Capacity600 lbs.
Table T-slot Size5/8" x 3
Longitudinal Travel (Hand Only)35-1/2"
Longitudinal Travel (w/ Power Feed)33"
Cross Travel13-1/4"
Vertical Travel16"
Ram Travel12"
Quill Feed Speeds0.0015", 0.003", 0.006"/rev
Quill Travel5"
Spindle TaperR8
Quill Diameter3-3/8"
Head Swivel RH/LH90 ° / 90 °
Head Tilting F/B45 ° / 45 °
Ram Turret Swivel360°
Spindle Motor3HP 3Ø (2 HP, 1Ø 8 Speeds) specify
Power220V or 440V, 3Ø (220V,1Ø) specify
Spindle Speeds TypeStep Pulley
Spindle Speeds (RPM) 16 Speeds90 - 5,600
Spindle Speeds (RPM) 8 Speeds90 - 2,800
Overall Dim. (LxWxH)86" x 68" x 67"
Net Weight2,500 lbs.
