COSEN Manual Swivel Head Mitering Horizontal Bandsaw MH-460M

COSEN Manual Swivel Head Mitering Horizontal Bandsaw MH-460M

$5,995

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

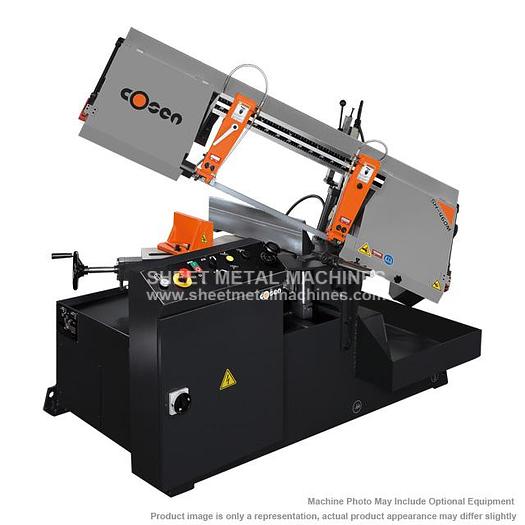

COSEN 10" Manual Swivel Head Mitering Horizontal Bandsaw MH-460M

  • The MH-460M comes equipped with a heavy-duty swivel center frame design, allowing for an easier set up of miter cuts. Key features included on this robust machine allow for efficient use in limited run production environments, as well as for tool room applications. Its solid construction ensures many years of reliability and accuracy at a high level of performance.
  • Hydraulic cylinder plus precision ground hinge support
  • Heavy-duty cast iron swivel center features straight cutting and miter cuts from 0 degrees to 30
  • Adjustable flood coolant system
  • Carbide blade guides and bearings provides additional blade support
  • Rigid cast-iron guide arms
  • Cast-iron Vise
  • Blade cleaning chip brush
  • Adjustable down feed and pressure control


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerCOSEN
ModelMH-460M
ConditionNew
Stock NumberMH-460M
Cutting Capacity - Round 0°10"
Cutting Capacity - Round -45°9"
Cutting Capacity - Round -60°4.3"
Cutting Capacity - Rectangle (H x W) 0°9" x 18.1"
Cutting Capacity - Rectangle -45°9" x 9"
Cutting Capacity - Rectangle -60°9" x 4.3"
Blade Speed95, 150, 213, 321 FPM
Blade Size (LxWxT)11' 6" x 1" x .035"
Blade Motor2 HP
Coolant Motor1/8 HP
Coolant Tank Capacity10.6 gal
Workbed Height25.4"
Weight 1,320 lbs.
Floor Space (L x W x H) 55" x 74.8" x 66.9"
