JET JJ-6HHBT Helical Head Benchtop Jointer 718600

JET JJ-6HHBT Helical Head Benchtop Jointer 718600

$849.99

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

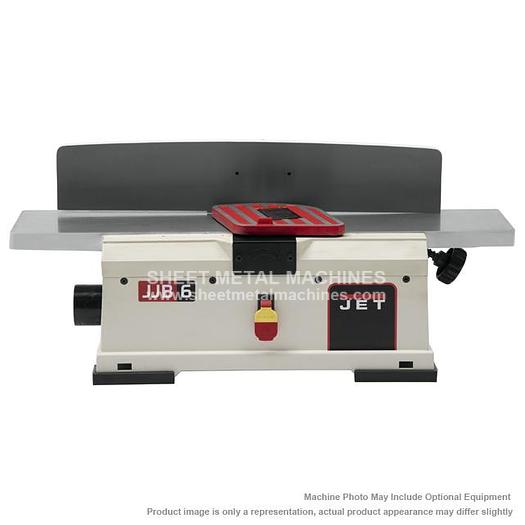

JET JJ-6HHBT 6" Helical Head Benchtop Jointer 718600

  • The new JET 6" Benchtop Jointer provides a smooth and consistent cut surface thanks to its use of 14 carbide tipped Helical Head blades. Heavy duty cast iron tables and fully adjustable fence make for a premium cutting experience. Features include a fully adjustable cast iron fence, internal dust collection system and safety black and push stick.
  • True helical cut with 14 Indexable Four- Sided Carbide Blades
  • Heavy duty Cast Iron Tables
  • Large Cast Iron Fence
  • Fully Adjustable fence with locking stops at +/- 45 tilt duel direction for beveling
  • Internal blower motor moves dust and chips away from motor and cutter head
  • Powerful 1HP 15 amp motor turns the cutter head at 10,000 RPM
  • Highly visible scale for accurate depth of cut adjustments
  • Front mounted toggle switch with removable safety key
  • Six inch jointing capacity in small footprint
  • Large dust collection bag with quick empty zipper
  • Includes 4 mounting brackets that secure jointer to benchtop
  • Safety push block and push stick included


OPTIONAL ITEMS:

  • PART# 718601: JJ-6HHBT Carbide Helical Head Inserts (10 pcs.): $69.99


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR

Specifications

ManufacturerJET
ModelJJ-6HHBT
ConditionNew
Stock Number718600
Type of CutterheadHelical Head
Number of Knives14 Carbide Four Sided in 2 Spiral Rows
Cuts Per MinuteContinuous
Cutterhead Diameter (In.)2
Sound Emission (dB)92
Cutterhead Speed (RPM)10,000
Maximum Width Cutting Capacity (in.)6
Maximum Depth Cutting Capacity (in.)1/8
Table Size (L x W) (In.)28-5/8 x 6-1/4
Fence Size (L x H) (In.)22-3/4 x 4-3/8
Fence Tilt (Deg.)+/- 45
Fence Positive Stops (Deg.)45° L, 90°, 45°R
Dust Port Outside Diameter (In.)2-1/2
Motor Power (HP)1 HP Brushed DC, 115V, 60Hz, 15A
Prewired Voltage (V)115
Motor Phase (PH)Single
Overall Dimensions30 x 20 x 13 in
Shipping Dimensions (L x W x H / in.)33 x 15 x 11
Weight (Lbs.)71 lbs.
