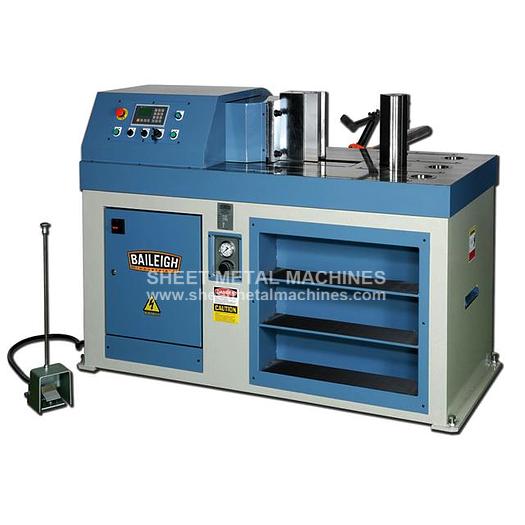

BAILEIGH Horizontal Press Brake HPB-78NC

BAILEIGH Horizontal Press Brake HPB-78NC

$33,695

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

BAILEIGH Horizontal Press Brake HPB-78NC Making smaller parts? This horizontal press brake can save time and money, since material lies on the table and stays square. The HPB-78NC can shear, bend, punch, and straighten.

  • 7.5 hp motor produces up to 78 tons of pressure.
  • 13.78” stroke length.
  • Runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system is located on top of the machine to reduce flex.
  • You can adjust the pressure of the the hydraulics for your material.
  • Designed for simple operation. In 15 minutes, anyone could learn to run it.
  • Numerical control (NC) programmer can store up to 99 programs with 10 bends per program.
  • Electronic encoders make this hydraulic press brake accurate to +/- .002”.
  • Product counter makes production runs more efficient.
  • Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material.
  • You can also run the machine in a manual mode for one-off projects as well as set-up.
  • Robust manual back gauge bolts to the machine and helps with repeatability.
  • Machined table, 37.4” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
  • Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out.
  • Accepts attachments for punching, straightening, shearing, and even pipe bending.
  • Includes a set of single-V tooling (V-opening die and V post).
  • Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.
  • 4,580-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure.
  • Shelving in the front can hold tooling and items you might need on a daily basis.
  • We stock replacement parts, so we can ship them to you quickly.
  • Covered by a 1-year parts warranty.


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerBaileigh Industrial
ModelHPB-78NC
ConditionNew
Stock NumberHPB-78NC
Pressure78 Tons
Stroke length13.78"
Stroke accuracy+/- .002"
Approach speed1.69"/Sec
Working speed.43"/Sec
Return speed.55"/Sec
Fixture holes1 @ 4.646" Dia 3 @ 3.268" Dia
Punch height11.81"
Max Bending Capacity (single vee die)11.81" (.472")
Table height37.4"
Motor7.5HP
Power requirement220V/3 Phase
Shipping dimensions (l/w/h)81"/38"/61"
Shipping weight4,580 lbs
