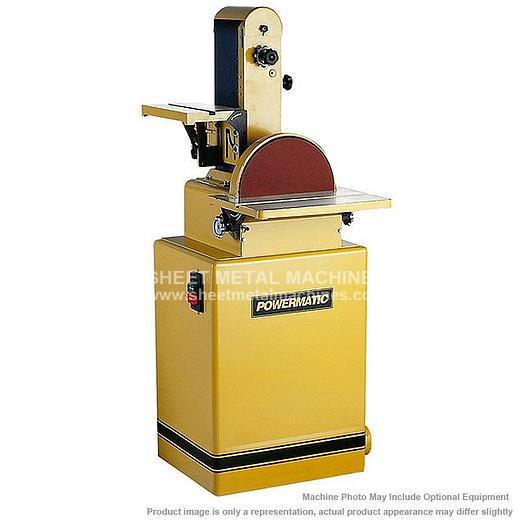

POWERMATIC 31A Belt/Disc Sander, 2HP 3PH 230/460V, 1791292K

Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)


Stock Number1791292K
Style (Type)Combination Belt/Disc
Disc Diameter (In.)12
Disc Speed (RPM)2,375
Disc Table Tilt (Deg.)15 Up, 45 Down
Disc Table Size (L x W) (In.)17-1/4 x 9
Sanding Belt Size (L x W) (In.)6 x 48
Belt Speed (RPM)2,410
Belt Table Tilt (Deg.)45 Down
Belt Table Size (L x W) (In.)13-1/4 x 7-1/2
Sanding Arm Locking Positions0/45/90
Dust Collection Minimum CFM Required (CFM)400
Dust Port Outside Diameter (In.)4
Motor Power (HP)2
Motor Phase2
Motor Voltage (V.)230/460
Prewired Voltage (V.)230
Wiring RemarksMagnetic Switch / Must purchase 31A-MSA-2 for 460V operation
Motor Current (Amps)7/3.5
Recommended Circuit Size (Amps.)20/10
