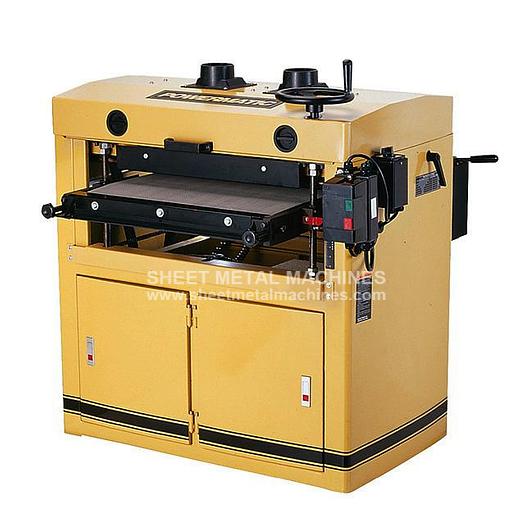

POWERMATIC DDS225 Drum Sander, 5HP 1PH 230V, 1791290

Finally, a production class Dual Drum Sander that is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR – Limited


Stock Number1791290
Maximum Board Width25"
Minimum Board Length9"
Maximum Board Thickness5-1/4"
Minimum Board Thickness1/32"
Drum Diameter6"
Sanding Drums (number of drums)2
Drum Length25"
Drum Speed1,700 RPM
Conveyor Motor1/4 HP
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required600 cu.ft/min
Electrical Controls - Magnetic Starter230 V Magnetic
Motor5 HP, 1 Ph
Motor Voltage230V
Dimensions ( L / W / H ) (in.)43 x 44 x 43
Net Weight ( lb. )730
