JET JWP-15BHH Helical Head Planer 722155

JET JWP-15BHH Helical Head Planer 722155

$2,599.99

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

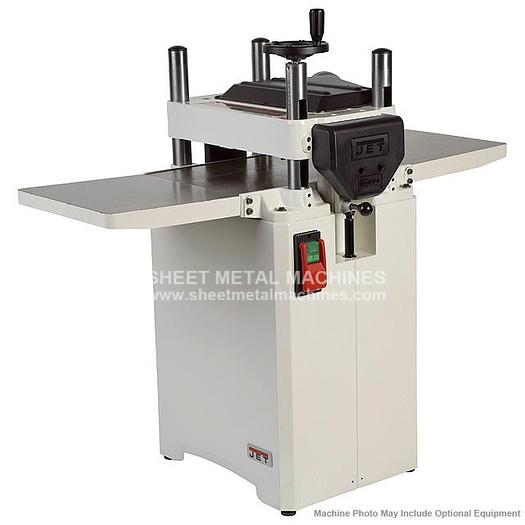

JET JWP-15BHH 15" Helical Head Planer 722155

  • The New JET 15" Helical Head planer delivers the power and efficiency that woodworkers demand in the shop. Features include a premium helical cutterhead with 48 staggered carbide knives for a superior finish and quieter cut, Innovative Precision Air Strut System PASS, rugged 4 post design, cast iron infeed/outfeed tables, 2 infeed speeds and a heavy-duty cast iron base mounted to a closed steel cabinet.
  • Innovative Precision Air Strut System provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
  • Helical cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
  • Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
  • Powerful 3 HP motor with v-belt transmission includes a poly-V belt to reduce vibration and running noise
  • Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
  • Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
  • Large cast iron precision ground infeed/outfeed tables provide support for large work pieces
  • Large hand wheel with positive gear drive easily moves the head to the desired board thickness
  • Magnetic switch with green safety light illuminates when powered
  • 4" Dust port hooks up to dust management system and helps keep shop clean


OPTIONAL ITEMS:

PART# 708807: JWP15HO-K Replacement Straight Knives Set (3): $89.99

PART# 708520: JWP-DRO Digital Readout for 15" and 20" Planers: $159.99


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)

Specifications

ManufacturerJet
ModelJWP-15BHH
ConditionNew
Stock Number722155
Cutterhead SupportPASS - Precision Air Strut System
Maximum Cutting Width15"
Maximum Cutting Thickness6"
Maximum Cutting Depth1/8"
Table movement per one revolution of handwheel1/16"
Number of cutterhead rows4
Knives48 pieces of four-sided inserts
Feed Rate (FPM)16 and 20
Cutterhead speed5,200
Motor3HP, 1Ph, 230V, 60Hz, 15A
Cutterhead Diameter2-5/8” (68mm)
Dust chute diameter4” (102mm)
Motor Amps15
Motor Power (HP)3
Motor Phase (PH)1
Motor Voltage (V)230
Net Weight (lbs.)286
