JET JWP-15B Straight Knife Planer 722150

JET JWP-15B Straight Knife Planer 722150
$1,699.99
Description
Please note: many products ship straight from manufacturer

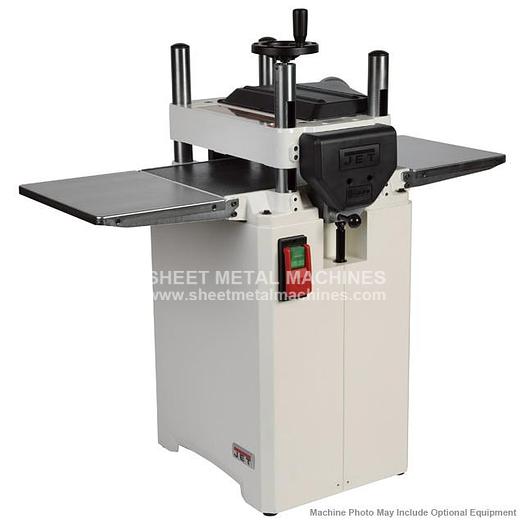

JET JWP-15B 15" Straight Knife Planer 722150
- The New JET 15" Straight Knife planer delivers the power and efficiency that woodworkers demand in the shop. Features include a straight knife cutterhead with 3 high-speed steel precision sharpened blades, Innovative Precision Air Strut System PASS, rugged 4 post design, adjustable folding tables, 2 infeed speeds and a heavy-duty cast iron base mounted to a closed steel cabinet.
- Innovative Precision Air Strut System provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
- Straight cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
- Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
- Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
- Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience
- Large hand wheel with positive gear drive easily moves the head to the desired board thickness
- Magnetic switch with green safety light illuminates when powered
- 4" Dust port hooks up to dust management system and helps keep shop clean
OPTIONAL ITEMS:
PART# 1791212: Inserts for Helical Cutterhead (10): $69.99
PART# 708520: JWP-DRO Digital Readout for 15" and 20" Planers: $159.99
PART# 708807: 15" Planer Straight Knife Set (3), fits JWP-15B: $89.99
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)
Specifications
Manufacturer | Jet |
Model | JWP-15B |
Condition | New |
Stock Number | 722150 |
Cutterhead Support | PASS - Precision Air Strut System |
Maximum Cutting Width | 15" |
Maximum Cutting Thickness | 6" |
Maximum Cutting Depth | 1/8" |
Table movement per one revolution of handwheel | 1/16" |
Number of cutterhead rows | 3 |
Knives | 3 high-speed steel inserts |
Feed Rate (FPM) | 16 and 20 |
Cutterhead speed | 5,200 |
Motor | 3HP, 1Ph, 230V, 60Hz, 15A |
Cutterhead Diameter | 2-5/8” (68mm) |
Dust chute diameter | 4” (102mm) |
Motor Amps | 15 |
Motor Power (HP) | 3 |
Motor Phase (PH) | 1 |
Motor Voltage (V) | 230 |
Net Weight (lbs.) | 253 |
