BAILEIGH Hydraulic Box and Pan Brake BB-9612H

BAILEIGH Hydraulic Box and Pan Brake BB-9612H

$20,600

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

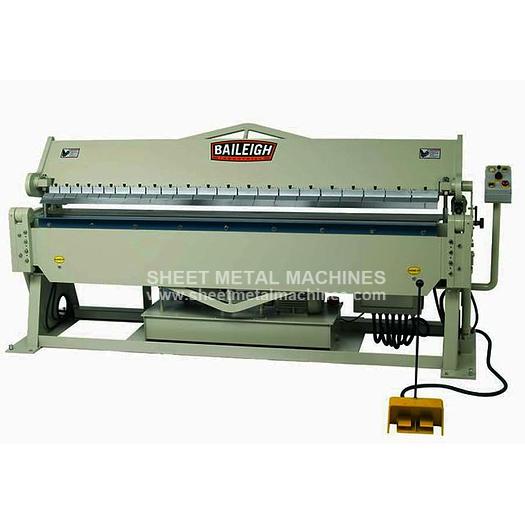

BAILEIGH Hydraulic Box and Pan Brake BB-9612H

Supported by a fully-welded steel frame, the BB-9612H hydraulic box and pan brake can bend 12 gauge mild steel (or lighter) across its full 8-foot (96”) width.

  • 135° maximum bend angle.
  • Comes standard with 22 fingers (6 fingers of 3”, 4 of 4”, 10 of 5”, and 2 of 6”) that you can adjust to make different sizes of boxes and pans.
  • Powerful industrial-grade hydraulics lift the leaf and lift or clamp the beam.
  • You can run this hydraulic sheet metal brake in manual or semi-automatic mode via toggle or foot pedal controls.
  • Programmable bend adjustment, for easy and exact repeatability, makes this a very production-oriented hydraulic sheet metal brake.
  • Apron detaches to let you get closer between bends.
  • Electro-welded beam and leaf, stabilized with truss rods, minimizes deflection when you’re bending at full capacity and keeps bends crisp and accurate.
  • Covered by a 1-year parts warranty.
  • We typically keep replacement parts in stock for fast deliveries.
  • Includes lifetime technical support by phone. Call up our knowledgeable team of reps whenever you need project advice or help related to this sheet metal finger brake.



ITEM: 8' x 12 ga Hydraulic Box & Pan Brake

MANUFACTURER: BAILEIGH

MODEL: BB-9612H


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerBaileigh Industrial
ModelBB-9612H
ConditionNew
Stock NumberBB-9612H
Length96"
Thickness (SS)12 ga (16 ga)
Bend Angle0 – 135 deg.
Finger Sizes 3" / 4" / 5" / 6"
Beam Adjustment1"
Min Reverse Bend.630"
Box Depth6"
Motor3 HP
Power Requirement220V / 3-phase
Shipping Dimensions (L/W/H)132" / 46" / 67"
Shipping Weight5,192 lbs.
