GMC Semi Automatic Bandsaw BS-330TSA

GMC Semi Automatic Bandsaw BS-330TSA
$13,850
Description
Please note: many products ship straight from manufacturer

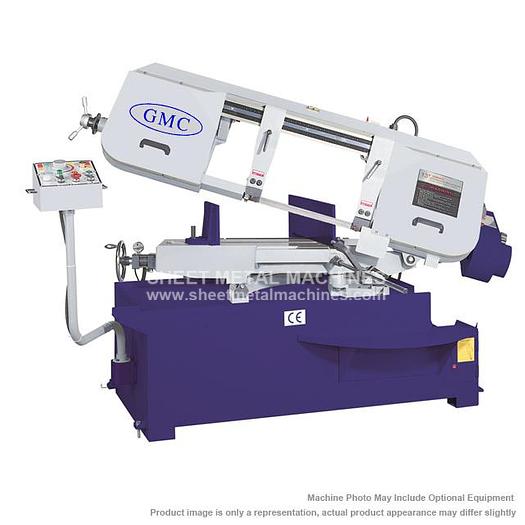

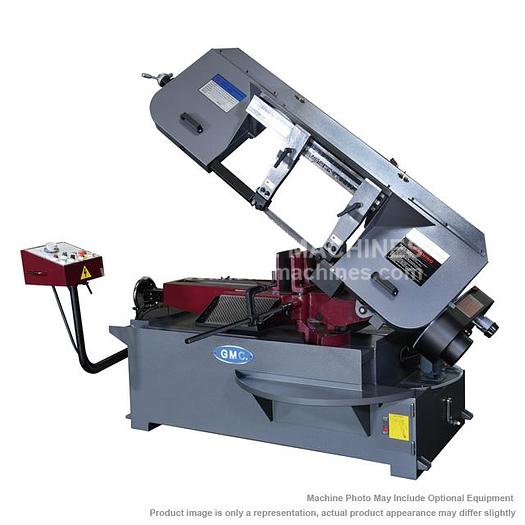

GMC 13" x 18" Semi Automatic Bandsaw BS-330TSA
- Taiwan Saw, ISO 9001 certified
- With a hydraulic vise, power downfeed, and bow automatic return
- Max. capacity of 13” OD and 13”x18” rectangular
- 1-1/4” blade, large size for greater accuracy and speed
- Variable blade speeds from 66 to 264 fpm with a dial to set up speeds
- Gear-driven transmission makes the machine more reliable & rigid
- Saw head miters from 0- 45°
- Hydraulic clamps the vise, lowers the head, then automatically raises the head back up after the cut is done
- Cast iron mitering head and bow without vibrations
- Tungsten carbide roller blade guides make a clean, high-quality cut.
- Laser pointer guide lets you see where the cut will be for more accurate cut.
- Patented blade tensioning gauge makes it simple to get the tension right.
- Power source: 220V, 3 phase
- One year industrial warranty for parts
STANDARD FEATURES:
- With a hydraulic vise
- Power downfeed
- Bow automatic return
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
Specifications
Manufacturer | GMC Machine Tools |
Model | BS-330TSA |
Condition | New |
Stock Number | BS-330TSA |
Cutting capacity: Round @ 90°/45° | 13"/8.86" |
Cutting capacity: Rectangular@ 90°/45° | 13” x 18.9”/11”x10” |
Cutting capacity: Square@ 90°/45° | 13"/8.86" |
Saw blade size | 1-1/4” x 0.043 x 161.4” |
Blade speeds | 66 - 264 fpm variable |
Power down feed rate | Variable |
Miter cut degree | 0 – 45° |
Blade drive motor | 3 HP, 220V, 3 phase |
Machine weight | 1,850 lbs. |
Machine dimensions: L x W x H | 90” x 38” x 60” |
