BAILEIGH Sheet Metal Brake BB-12014H

BAILEIGH Sheet Metal Brake BB-12014H
$23,746
Description
Please note: many products ship straight from manufacturer

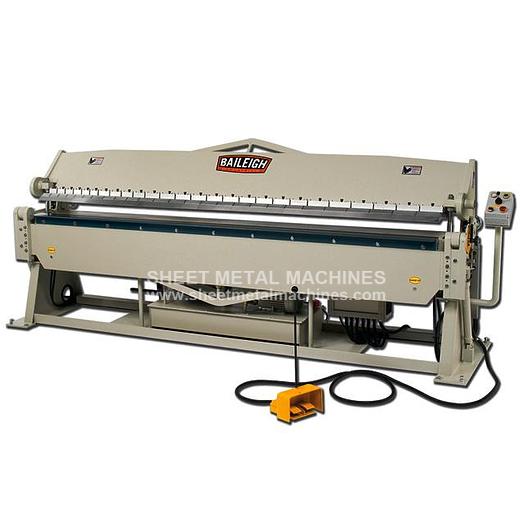

BAILEIGH Hydraulic Sheet Metal Brake BB-12014H
This hydraulic box and pan brake improves on our manual BB-12014 with programmable bending and more power. A welded steel frame ensures accuracy and prevents twisting.
- Maximum capacity of 14 gauge mild steel or 18 gauge stainless steel.
- 10-foot (120”) working width.
- Maximum bend angle of 135°.
- Runs on 220-volt 3-phase power.
- Industrial-grade hydraulic system cuts down on operator effort for production runs, making your shop more efficient and saving you money.
- Simple to operate with programmable bend angle:
- Dial in the desired bend degree (including springback).
- Load the machine.
- Begin the cycle by stepping on the foot pedal controls.
- Machine clamps the material, and the leaf will lift to the desired angle and return.
- Upper beam unclamps the material, ready for the next bend.
- You can operate the machine from the control panel or with the included foot pedal.
- Includes 26 hardened fingers of various sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6").
- Fully-welded steel frame and support rods add rigidity to the overall structure to provide years of trouble-free use.
- Baileigh covers this hydraulic sheet metal brake with a 1-year parts warranty.
- We carry most replacement parts in stock for fast shipping.
- Comes with lifetime technical support by phone. Call up our experienced team of reps for troubleshooting and application tips.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Baileigh Industrial |
Model | BB-12014H |
Condition | New |
Stock Number | BB-12014H |
Length | 120" |
Thickness (SS) | 14 ga (18 ga) |
Bend Angle | 0 – 135 deg. |
Beam Adjustment | 1" |
Min Reverse Bend | .5" |
Box Depth | 6" |
Finger Sizes | 3" – 4" – 5" – 6" |
Motor | 3 HP |
Power Requirement | 220V / 3-phase |
Shipping Dimensions (L/W/H) | 153" / 46" / 67" |
