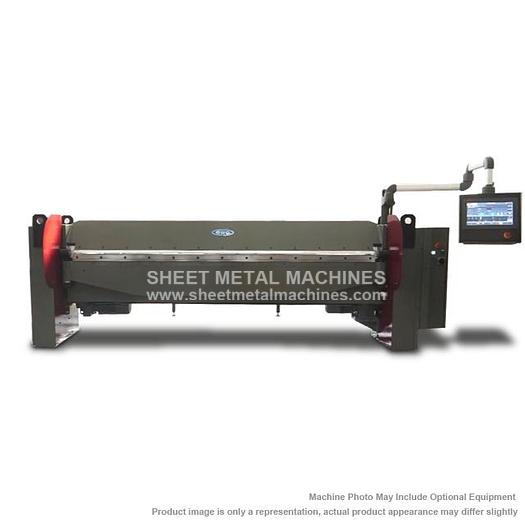

GMC CNC Folder EFM-1216CNC

GMC CNC Folder EFM-1216CNC

$59,850

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

  • ISO 9001 certified
  • Designed in US and Taiwan quality Machine
  • Meet OSHA and CE safety standard
  • ESA CNC control, made in Italy
  • Max. 99 bends per program
  • Up to 2000 Programs Storage
  • Profiles library with graphics
  • Programmable Radius Bend
  • Programmable Angle/ Angle Correct
  • 48” CNC back gauge with table and fingers
  • Hardened nose bar and table, up to 48HRC
  • Comes with one 1” Insert Bar and one 1/2” Insert Bar
  • Yaskawa Servo motors and Drives
  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet
  • Meet OSHA standard, to start the program, need to press foot pedal twice
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • One year industrial warranty for parts


OPTIONAL ITEMS:

  • 1/2” thick insert bar for 1/2” min. reverse bend,capacity mild steel 20Ga: $1,950
  • 3/16” thick insert bar for 1/4” min. reverse bend,capacity mild steel 24Ga: $1,950
  • One day on-site training: $1,950


Design and Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerGMC Machine Tools
ModelEFM-1216CNC
ConditionNew
Stock NumberEFM-1216CNC
Capacity: Mild Steel16 Ga
Capacity: Stainless Steel20 Ga
Bending length capacity12'
Bend Angle Degree, programmable0- 135 degree
Large Beam Opening/clamping opening4-7/8"
Min. Reverse Bend1/2"
Max. Table Back Gauge Distance48-3/8"
Min. Table Back Gauge Distance1/2"
Back Gauge Repeatability0.0039"
Back Gauge Table height35-3/4"
Main motor7-1/2HP, 220V, 3-phase
Servo motor for back gauge3HP
Clamping motor3HP
Machine size, L x W x H182" x 79" x 63"
Machine weight10,150 lbs.
