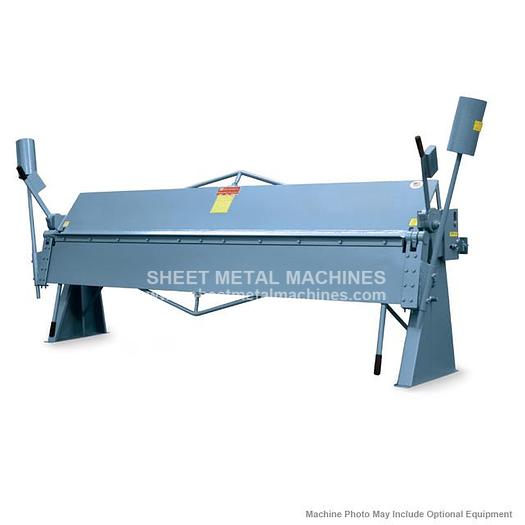

ROPER WHITNEY Connecticut Straight Bending Brake 816

ROPER WHITNEY Connecticut Straight Bending Brake 816

$4,650 IN STOCK NOW! READY TO SHIP!

orCall 386-304-3720

Description

ROPER WHITNEY Connecticut Straight Bending Brake 816

  • Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, Improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment. Connecticut Series hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service. This machine has a bending capacity of 16 gauge up to 8 feet long.
  • MADE IN USA

ITEM: 8' x 16 ga. Connecticut Straight Bending Brake

MANUFACTURER: ROPER WHITNEY

MODEL: 816

PART# 157100816


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Limited

Note: Consumable tooling is not covered under the 3 year manufacturer’s warranty.

Specifications

ManufacturerRoper Whitney
Model816
ConditionNew
Stock Number157100816
Length of bed97"
Capacity on mild steel, 1" flange With bending bar and angle in place16 ga.
With bending angle removed20 ga.
With bending bar and angle removed24 ga.
Minimum reverse bend (bar and angle removed)1/4"
Maximum lift of beam1-5/8"
Front to rear adjustment of beam1-1/8"
Shipping Weight1,640 lbs.
