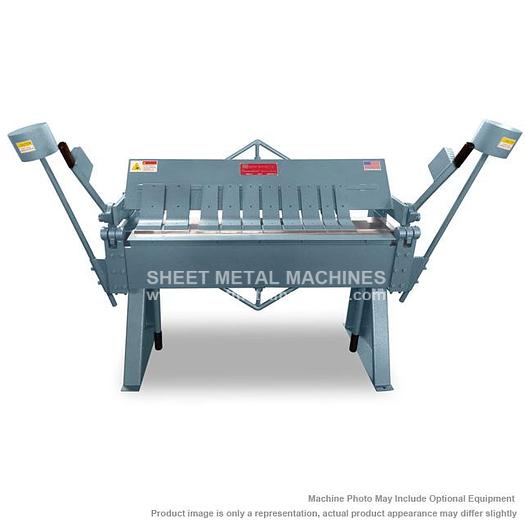

ROPER WHITNEY 4' x 12 ga. Connecticut Box & Pan Bending Brake U-412-6

PART# 155100416

  • Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending within rated capacities. Features of the Connecticut box and pan bending brake are a 6-inch depth of box capacity, 4 feet of 12 gauge bending capacity, positive clamping pressure adjustment, apron stop rod for repeat bends, replaceable bushings and hinge pins, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and positive rear material gauge adjustment. Connecticut Series box and pan brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service. *Lead times may be longer for this item.


  • Radius Fingers - per inch (PLEASE CALL): $31.50

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Limited

Note: Consumable tooling is not covered under the 3 year manufacturer’s warranty.


ManufacturerRoper Whitney
Stock Number155100416
Bending Length48" (4')
Capacity on mild steel, 1" flange With bending bar and angle in place12 ga.
With bending angle removed18 ga.
With bending bar and angle removed22 ga.
Minimum reverse bend (bar and angle removed)1/4"
Maximum lift of beam1-5/8"
Finger widths3", 4", 5"
Maximum Depth of Box6"
Front to Rear Adjustment1-1/8"
Dimensions68" x 53" x 35"
Shipping Weight1,600 lbs.
