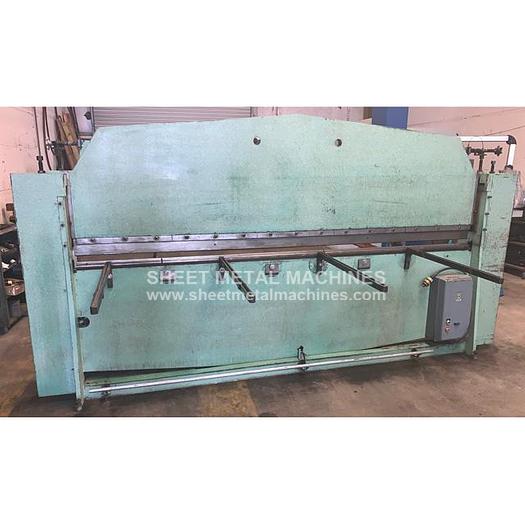

ROTODIE 120" x 14 ga Press Brake #15

ROTODIE 120" x 14 ga Press Brake #15

$12,500 CALL FOR FREIGHT

orCall 386-304-3720

Description

  •      (7) Front Support Arms
  • Manual 26” Backgauge
  • (2) Full length Standard Forming Punches
  • (1) Full Length Hemming Punch
  • (1) Full Length Rotodie with Assorted V’s ( note some of the V’s have a Notch in the them for reverse flange bending
  • We bent full length Piece of 22 Gauge and It did not affect the quality of the Bend

Specifications

ManufacturerROTODIE
Model15
ConditionUsed
Stock Number8908
Bending Capacity120" x 14 Gauge
Length of Stroke3"
Strokes Per Minute20 to 50
Die Clearance2-1/8"
Die Space7-1/2"
Motor15 HP, 200/400 V 3 Phase
Overall DimensionsLength: 12", 7" Front to Back: 22", Height: 6' 1"
Approximate Shipping Weight8,950 lbs.
