GMC 45 Ton Hydraulic Press Brake HPB-4504CNC
$33,850 GMC PRESS BRAKE SPECIAL- WHILE SUPPLIES LAST - FREE SHIPPING!
Description
Please note: many products ship straight from manufacturer

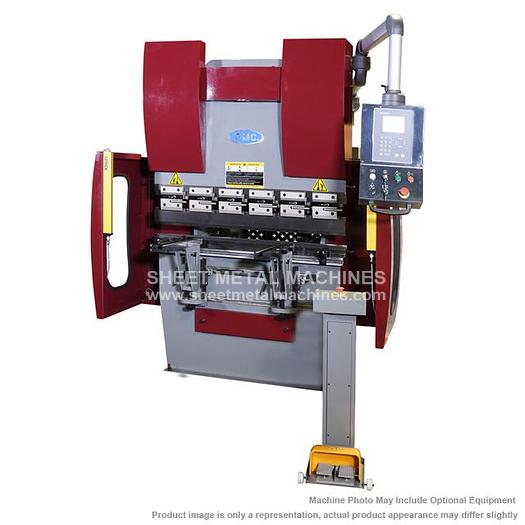

GMC 45 Ton Hydraulic Press Brake with ESA 625 Controller HPB-4504CNC
- ISO 9001 certified
- Meet OSHA and CE safety standard.
- ESA (Italy) Model 625
- 2 Axis CNC Controller: Stores 1000’s of programs, large punch and die library
- Free Standard General Purpose Punch and Multi V Die Rated for 10 Gauge and Lighter
- Large punch / die library
- Programmable Angle/Angle Correct
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- Manual Hydraulic crowning
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
- Note: Warranty for Rotary Phase Convertor Users: Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only
STANDARD EQUIPMENT:
- ESA (Italy) Model 625
- 2 Axis CNC Controller : Stores 1000’s of programs, large punch and die library
- Free Standard General Purpose Punch and Multi V Die Rated for 10 Gauge and Lighter
- (2) 24” front support arms, Quick Release for easy positioning
- Quick release segmented (American Style Tooling) punch holder
- Full Length Gooseneck Punch (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard
OPTIONAL ITEMS:
- Custom Tooling, Made in the USA - CALL FOR QUOTE
- On Site Training: $4,995.00
- Online FaceTime or Video Chat Training: $595.00 for 2 hours
- Available Step Down Transformers: 440V-480V to either 208V or 230V - Call for Price
- ESA 630 Graphic Controller with Bend Sequence – Call for price
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | GMC Machine Tools |
| Model | HPB-4504CNC |
| Condition | New |
| Stock Number | HPB-4504CNC |
| Maximum Pressure | 45 Tons |
| Bending length capacity | 49" (4' 1") |
| Distance between uprights (housing) | 33-1/2" |
| Ram Stroke travel | 6" |
| Cylinder travel adjustment, max | 2" |
| Table Width | 6" |
| Distance between table and ram | 13" |
| Throat Depth: | 8-1/2" |
| Back Gauge Distance | 24" |
| Back Gauge Repeatability | .0039" |
| Y Axis Repeatability | .0039" |
| Approach speed, inch / second | 3.54" |
| Working speed , inch / second | 0.78" |
| Return speed , inch / second | 2.75" |
| Main Motor | 5-1/2 HP 208V or 220V, 3phase (please specify) |
| Servo motor for back gauge | 1 HP, 220V, 3-phase |
| Servo motor for bending angle setting | 1/2 HP, 220V, 3-phase |
| Hydraulic Oil Tank Capacity | 25 Gal. |
| Machine Weight | 6,150 lbs. |
| Machine size, L x W x H | 71" x 56" x 81” |
