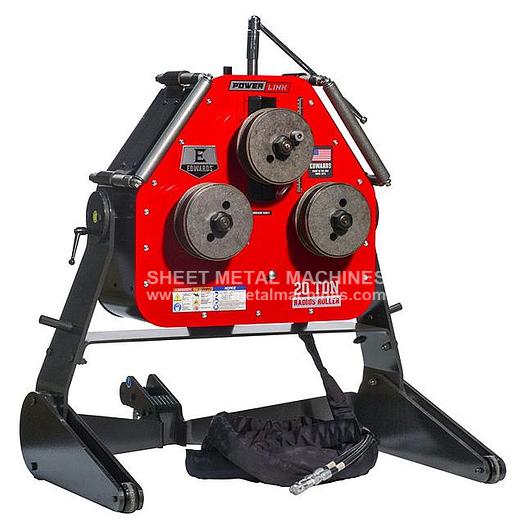

EDWARDS Radius Roller HAT5000

EDWARDS Radius Roller HAT5000

$10,719 More Voltages available - PLEASE CONTACT FOR AVAILABILITY

orCall 386-304-3720

Description

  • Our Pipe, Tube and Section Radius Roller is another essential quick-connect hydraulic tool. Plug it into your Edwards Ironworker with the Hydraulic Accessory Pack or power it separately with an Edwards Porta-Power to greatly expand your fabrication capabilities. Designed for medium to heavy material, the Edwards Radius Roller powers through your job quickly and accurately. The variable speed hydraulic drive allows you to dial in the appropriate speed for various materials. Quickly change the orientation from vertical for smaller projects to horizontal for those larger, heavier jobs.
  • MADE IN THE USA


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts


OPTIONAL MODELS:

  • HAT5010: Radius Roller and Portable Power Unit 1 Phase, 230 Volt: $15,309.00
  • HAT5020: Radius Roller and Portable Power Unit 3 Phase, 230 Volt: $14,969.00
  • HAT5030: Radius Roller and Portable Power Unit 3 Phase, 460 Volt: $15,309.00


OPTIONAL ITEMS: CALL FOR PRICE

  • Bend-Tech Software
Show All

Specifications

ManufacturerEdwards Ironworkers
ModelHAT5000
ConditionNew
Stock NumberHAT5000
Round Pipe2" Schedule 40
Round Tube2-1/2" (.095")
Square Tube2" (.120")
Solid Round1.375"
Flat Bar - Easy Way3" (3.50")
Flat Bar - Hard Way2.25" (3.75")
Angle Iron2" (.250")
Shaft Diameter2.0"
Shaft Center Distance14.12"
Motor - Standard5 HP 3~ 208 V or 230 V 1725 RPM 14 A
Motor - Optional5 HP 3~ 460 V, 1725 RPM 7 A; 5 HP 3~ 575 V, 1725 RPM 6 A; 5 HP 1~ 230 V, 1725 RPM 23 A
Hydraulic Pump3-1/2 GPM - 1 Stage
Valve Pressure2750 PSI
Reservoir7 Gallons
DimensionsH 43" x W 45" x D 49"
Shipping Weight950 lbs.
