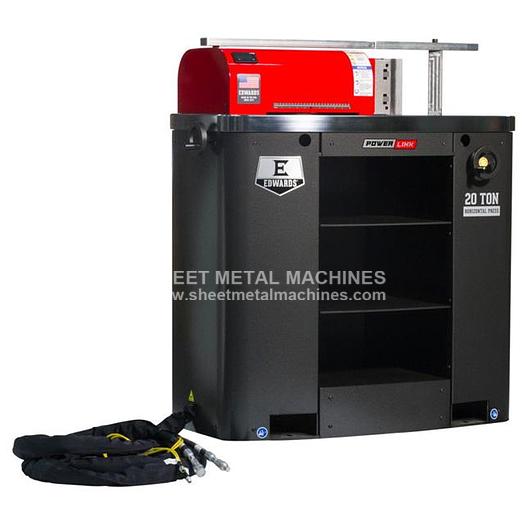

EDWARDS Horizontal Press HAT6000

EDWARDS Horizontal Press HAT6000

$7,999

orCall 386-304-3720

Description

  • Your Go-To Tool. With 20 tons of force, the Edwards Horizontal Press accepts a great variety of tooling to form, brake, and straighten mild steel. This compact powerhouse quickly connects to your Edwards Ironworker with a Hydraulic Accessory Pack or Edwards Porta-Power to greatly expand your fabrication capabilities. Designed for maximum tooling flexibility, the 4 pin locations are locked with a simple crank for inboard tool squaring. The included digital encoder reads positive stop for accurate repeatability within 0.01". The potential of this tool is only limited by your imagination.
  • MADE IN THE USA


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts


OPTIONAL ITEMS: CALL FOR PRICE

  • Horizontal Press Back Gauge


OPTIONAL MODELS: CALL FOR PRICE

  • HAT6010: 20 Ton Horizontal Press and Porta Power: 1 Phase 230V
  • HAT6020: 20 Ton Horizontal Press and Porta Power: 3 Phase 230V
  • HAT6030: 20 Ton Horizontal Press and Porta Power: 3 Phase 460V
  • HAT6005: 20 Ton Horizontal Press and Porta Power: 3 Phase 575V


Specifications

ManufacturerEdwards Ironworkers
ModelHAT6000
ConditionNew
Stock NumberHAT6000
Rating15 Tons
Cylinder2.25" Ram
Stroke10"
Work Height38" - 40"
Table Dimensions24" x 42"
Tooling Details - Pin Diameter2"
Tooling Details - Dimensions9.79" min to 13.54" max (tool chuck to pin centers)
Tooling Details - Pin Height6" max (standard tooling)
Tooling Details - Tooling Head1/2" T Nut/Set Screw & American Standard Brake Punch Tooling
Motor - Standard5 HP 3~ 208V or 230V, 1725 RPM 14 A
Motor - Optional5 HP 3~ 460V, 1725 RPM 7 A; 5 HP 3~ 575V, 1725 RPM 6 A; 5 HP 1~ 230V, 1725 RPM 23 A
Hydraulic Pump 3-1/2 GPM - 1 Stage
Valve Pressure 2750 PSI
Reservoir 7 Gallons
Shipping Weight 1,350 lbs.
