EDWARDS 10 Ton Tube/Pipe Bender ED9-HAT1000
EDWARDS 10 Ton Tube/Pipe Bender ED9-HAT1000
$4,379 More Voltages available - PLEASE CONTACT FOR AVAILABILITY
Description
Please note: many products ship straight from manufacturer

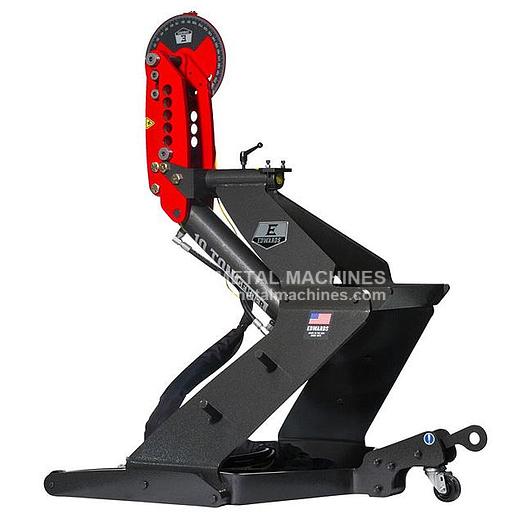

EDWARDS 10 Ton Tube/Pipe Bender ED9-HAT1000
- Our 10 Ton Bender is a quick-connect hydraulic tool to greatly expand your fabrication capabilities. Designed for medium to heavy material, the Edwards 10 Ton Bender powers through 2" (I.D.) Schedule 40 pipe, 2-1/2" (O.D.) tube and 2" square tube quickly and accurately. Choose from our over 260 standard Bender Die Sets to get your job done. Call for custom die information and material compatibility requirements.
- Power it up with an Edwards Ironworker with factory installed Hydraulic Accessory Pack or an Edwards Porta Power 5hp, 2750psi, portable power unit.
- Plug + Play Operation
- Horizontal or Vertical Operating Positions
- Proximity Switch Allows Easy, Repeatable Bends
- Heavy-Duty Rolling Stand
- Easy-to-Use Hand/Jog Controls
- MADE IN THE USA
OPTIONAL ITEMS:
PLEASE CALL US FOR OTHER AVAILABLE CONFIGURATIONS & ACCESSORIES: 386-304-3720
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | Edwards Ironworkers |
| Model | ED9-HAT1000 |
| Condition | New |
| Stock Number | ED9-HAT1000 |
| Rated Capacity | 10 Ton |
| Bend Capacity | 180° |
| Pipe Capacity | 2" (ID) Schedule 40 |
| Tube Capacity | 2-1/2" (OD) .095" |
| Square Tube Capacity | 2" (OD) .25" |
| Chromoly Capacity | 2-1/4" (OD) .083" |
| Electric Motor - Standard | 5 HP, 3 Phase, 208V or 230V, 1725 rpm,14A |
| Electric Motor - Optional | 5 HP, 1 Phase, 208V or 230V, 1725 rpm, 23A; 5 HP, 3 Phase, 460V, 1725 rpm, 7A; 5 HP, 3 Phase, 575V, 1725 rpm, 6A |
| Hydraulic Pump Size | 3-1/2 GPM - 1 stage |
| Valve Pressure | 2,750 PSI max. |
| Reservoir | 7 gallons |
| Cylinder | 1-3/4" Ram |
| Stroke | 14" |
| Dimensions | H 40-1/2" x W 36-1/2" x D 42" |
| Shipping Weight | 600 lbs. |
