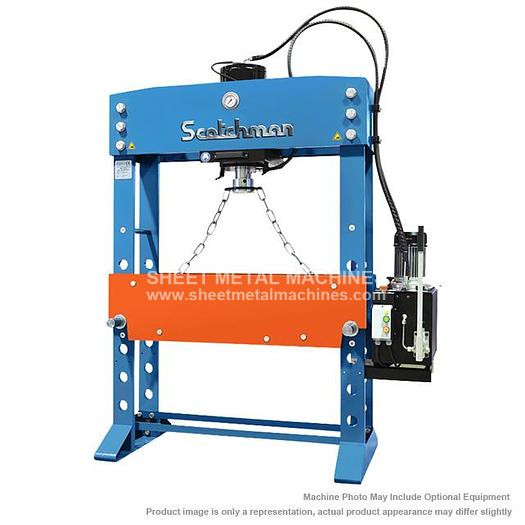

SCOTCHMAN 160 Ton Hydraulic Press PressPro 160

SCOTCHMAN 160 Ton Hydraulic Press PressPro 160
Contact us for price
Description
- Industrial Shop Press, Heavy-Duty H-Frame Press
- Heavy Duty All-Steel Construction: Heavy-duty H-frame constructed of high-grade steel plate and built to exacting standards for quality and durability
- Ram Moves Laterally for Added Versatility Cylinder that moves left or right to accommodate off-center projects. (A movable workhead facilitates off-center pressing.)
- 3 Ram Speeds (approach - press - return)
- Industrial Grade Hydraulic System Industrial-grade hydraulic system that rides smoothly on sealed ball bearings.
- 15” of Vertical Ram Travel
- Joystick Operation with hand pump option for precision press work
- Removable ram cap, allows the machine to accept a wide variety of tooling
- Adjustable H-frame bed/table height offers increased versatility with its ability to raise and lower the table for the best working distance possible. (N/A on 160MT model - the movable table model has a fixed height, but can move laterally.)
- Open-side frame design allows for material to pass through and provides flexibility to work on the longest work pieces
- Set of V-Blocks to simplify your pressing jobs and provide extra support. Most often used to hold round metal rods and pipes, but can also function as a small table plate. (Standard on all models except the 160MT)
- Pressure Gauge to Monitor ForcePressure gauge, so you can monitor force and make repeatable parts.
- - Easy to read pressure gauge is conveniently positioned to help you continually monitor the action.
- - Pressure gage provides accurate measurements allowing for easy repeatable parts production.
- Performance – pressure gage provides accurate measurements allowing for easy repeatable parts production
- Safety - Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
- All Scotchman press models comply with the strictest regulatory requirements, meeting the European CE Standards.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Specifications
Manufacturer | Scotchman |
Model | PressPro 160 |
Condition | New |
Stock Number | PRESS PRO 160 |
Capacity | 160 Tons |
Motor | 4 HP (available 230/460v 3ph - specify) |
RPM | 3000 |
Ram Speed-Approach | 17 ipm |
Ram Speed-Press | 5 ipm |
Ram Speed-Return | 22 ipm |
Open Height - Min. | 7" |
Open Height - Max. | 36-1/2" |
Stroke | 15-3/4" |
Lateral Ram Slide | Yes |
Width Between Uprights | 43-1/4" |
Width Between Table Channels | 15" |
Table Height | Adjustable |
Footprint (LxW) | 68" x 37" |
Height Overall | 87" |
Weight (including V-blocks) | 2,879 lbs. |
