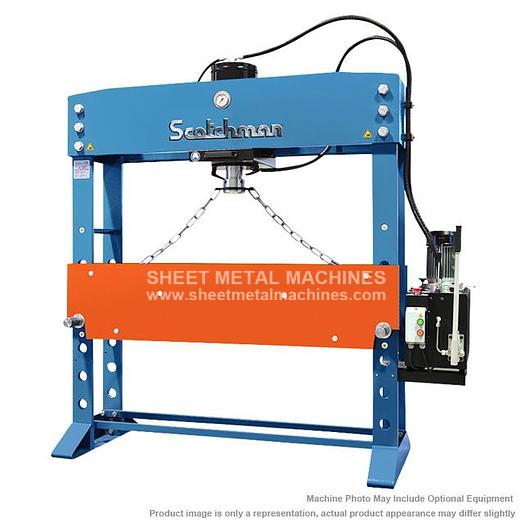

SCOTCHMAN 100 Ton Wide Frame Hydraulic Press PressPro 100W

SCOTCHMAN 100 Ton Wide Frame Hydraulic Press PressPro 100W

Contact us for price

orCall 386-304-3720

Description

  • Industrial Shop Press, Heavy-Duty H-Frame Press
  • Heavy Duty All-Steel Construction: Heavy-duty H-frame constructed of high-grade steel plate and built to exacting standards for quality and durability
  • Ram Moves Laterally for Added Versatility Cylinder that moves left or right to accommodate off-center projects. (A movable workhead facilitates off-center pressing.)
  • 3 Ram Speeds (approach - press - return)
  • Industrial Grade Hydraulic System Industrial-grade hydraulic system that rides smoothly on sealed ball bearings.
  • 15” of Vertical Ram Travel
  • Joystick Operation with hand pump option for precision press work
  • Removable ram cap, allows the machine to accept a wide variety of tooling
  • Adjustable H-frame bed/table height offers increased versatility with its ability to raise and lower the table for the best working distance possible. (N/A on 160MT model - the movable table model has a fixed height, but can move laterally.)
  • Open-side frame design allows for material to pass through and provides flexibility to work on the longest work pieces
  • Set of V-Blocks to simplify your pressing jobs and provide extra support. Most often used to hold round metal rods and pipes, but can also function as a small table plate. (Standard on all models except the 160MT)
  1. Pressure Gauge to Monitor ForcePressure gauge, so you can monitor force and make repeatable parts.
  2. - Easy to read pressure gauge is conveniently positioned to help you continually monitor the action.
  3. - Pressure gage provides accurate measurements allowing for easy repeatable parts production.
  • Performance – pressure gage provides accurate measurements allowing for easy repeatable parts production
  • Safety - Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • All Scotchman press models comply with the strictest regulatory requirements, meeting the European CE Standards.


STANDARD ACCESSORIES:

  • 2 Steel V-Blocks


OPTIONAL ITEMS:

  • Mandrel Set (Ø 18, 33, 45, 58 and 72 mm)
  • Mandrel Piston Head (100)


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Parts

Specifications

ManufacturerScotchman
ModelPressPro 100W
ConditionNew
Stock NumberPRESS PRO 100W
Capacity100 Tons
Motor3 HP (available 230/460v 3ph - specify)
RPM3000
Ram Speed-Approach17 ipm
Ram Speed-Press5 ipm
Ram Speed-Return21 ipm
Open Height - Min.5"
Open Height - Max.34-3/4"
Stroke15"
Lateral Ram SlideYes
Width Between Uprights59"
Width Between Table Channels11-3/4"
Table HeightAdjustable
Footprint (LxW)71-1/4" x 34"
Height Overall82"
Weight (including V-blocks)3,451 lbs.
