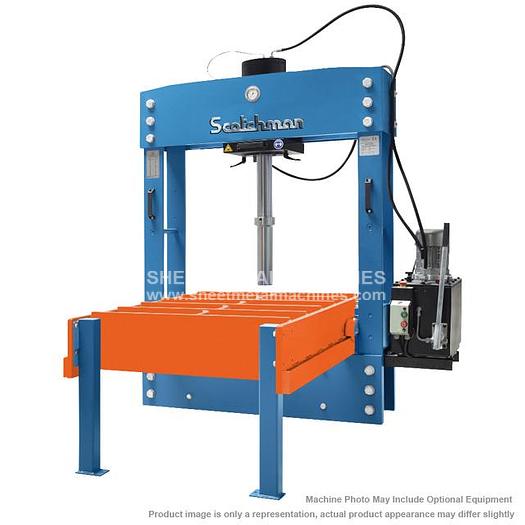

SCOTCHMAN 160 Ton Hydraulic Press with Movable Table PressPro 160MT

SCOTCHMAN 160 Ton Hydraulic Press with Movable Table PressPro 160MT

Contact us for price

orCall 386-304-3720

Description

  • Industrial Shop Press, Heavy-Duty H-Frame Press
  • The movable table feature allows for overhead loading of heavy workpieces and is ideal for the straightening of large sheets & structures.
  • Easily slide the ram head (lateral) and movable table (longitudinal) to access all different points of the work surface. Movement of ram cylinder and table frame are done manually
  • Heavy Duty All-Steel Construction: Heavy-duty H-frame constructed of high-grade steel plate and built to exacting standards for quality and durability
  • Ram Moves Laterally for Added Versatility Cylinder that moves left or right to accommodate off-center projects. (A movable workhead facilitates off-center pressing.)
  • 3 Ram Speeds (approach - press - return)
  • Industrial Grade Hydraulic System Industrial-grade hydraulic system that rides smoothly on sealed ball bearings.
  • 15” of Vertical Ram Travel
  • Joystick Operation with hand pump option for precision press work
  • Removable ram cap, allows the machine to accept a wide variety of tooling
  • Adjustable H-frame bed/table height offers increased versatility with its ability to raise and lower the table for the best working distance possible. (N/A on 160MT model - the movable table model has a fixed height, but can move laterally.)
  • Open-side frame design allows for material to pass through and provides flexibility to work on the longest work pieces
  • Set of V-Blocks to simplify your pressing jobs and provide extra support. Most often used to hold round metal rods and pipes, but can also function as a small table plate. (Standard on all models except the 160MT)
  1. Pressure Gauge to Monitor ForcePressure gauge, so you can monitor force and make repeatable parts.
  2. - Easy to read pressure gauge is conveniently positioned to help you continually monitor the action.
  3. - Pressure gage provides accurate measurements allowing for easy repeatable parts production.
  • Performance – pressure gage provides accurate measurements allowing for easy repeatable parts production
  • Safety - Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • All Scotchman press models comply with the strictest regulatory requirements, meeting the European CE Standards.


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Parts

Specifications

ManufacturerScotchman
ModelPressPro 160MT
ConditionNew
Stock NumberPRESS PRO 160MT
Capacity160 Tons
Motor4 HP (available 230/460v 3ph - specify)
RPM3000
Ram Speed-Approach17 ipm
Ram Speed-Press5 ipm
Ram Speed-Return22 ipm
Open Height - Min.7"
Open Height - Max.36-1/2"
Stroke15-3/4" (w/cylinder extension of 12" (300mm) to reach table)
Lateral Ram SlideYes
Width Between Uprights43-1/4"
Width Between Table Channels15"
Table HeightFixed / Table size (LxW): 68-1/2" x 39-1/4" / Horizontal Movement: 39-1/2" / Max Load: 1,653 lbs.
Footprint (LxW)83-3/4" x 37"
Height Overall83"
Weight (including V-blocks)4,994 lbs. (does not include V-blocks)
Weight4,994 lbs. (does not include V-blocks)
