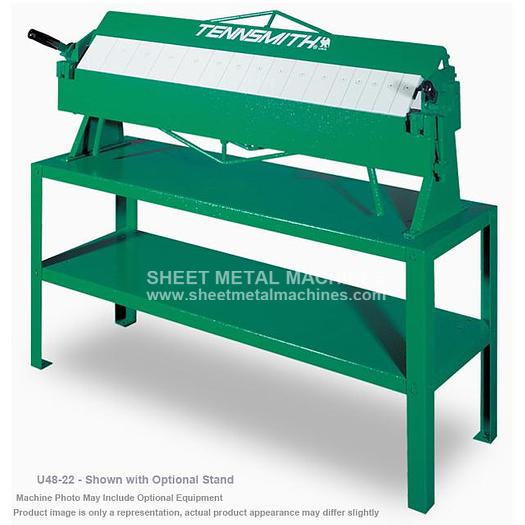

TENNSMITH Bench-Mounted Box & Pan Hand Brake U48-22

TENNSMITH Bench-Mounted Box & Pan Hand Brake U48-22


orCall 386-304-3720


  • TENNSMITH'S bench-mounted hand brakes are rugged, dependable USA-made tools that wont break your budget. Model HBU48-16 is a heavy-duty bench brake suitable for box and pan or straight bending in up to 16-gauge mild steel. The brake features a removable apron angle and apron insert permitting 1/4 inch reverse bends in lighter materials. The upper leaf and nose bar has a wide range of adjustment for radius bending. Standard equipment includes an apron stop rod for repeat bends, extension handles and a counterweight.
  • Models U48-22 and S48-22 are lighter capacity versions of the four-foot bench brake, which offer economical alternatives in working 22-gauge and lighter materials. Also, their lighter weights make these models better suited for transporting to remote job sites.
  • TENNSMITH'S bench-mounted hand brakes provide an economical means of performing a wide range of sheet metal bending and forming operations. These brakes are all-steel welded construction, readily adjustable and utilize bronze bearings at pivot points.


Stand $270.00

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Limited


Stock Number85010
Capacity - Mild Steel ( ga. )22
Bending Length48-1/4"
Maximum Depth of Box3"
Maximum Lift of Beam7/8"
Front to Rear Beam Adjustment1/4"
Minimum reverse bend5/16"
Minimum Flange in Capacity Material3/8"
Finger Widths2, 3, 4 in.
Shipping weight: (lbs.)280
