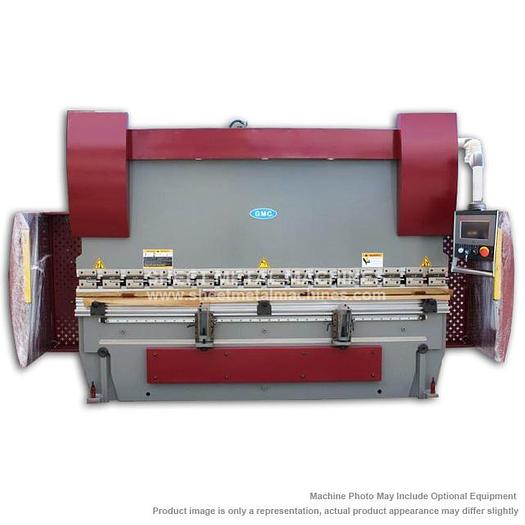

GMC 135 Ton Hydraulic Press Brake HPB-13510CNC

GMC 135 Ton Hydraulic Press Brake HPB-13510CNC

$46,850 IN STOCK NOW! READY TO SHIP!

orCall 386-304-3720

Description

  • ISO 9001 certified
  • Meet OSHA and CE safety standard
  • ESA 630, 2 Axis CNC back gaugeTool Library
  • Programmable Angle/ Angle Correct
  • Germany Rexroth hydraulic system
  • Yaskawa Servo motor and Drives
  • Schneider electrical components
  • Hydraulic crowning
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • One year industrial warranty for parts
  • Note: Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only


STANDARD EQUIPMENT:

  • ESA 630 2D Graphic Controller - Stores up to 2000 Programs, Punch/Dies Library, American Style Punch, Servo Drives, Hydraulic Crowning ( 2 ) 24” front support arms on T slot movement
  • Quick release segmented punch holder
  • Full Length Gooseneck Punch HRC 50
  • Full Length Vee Die with 7 assorted sizes HRC 50
  • Lntech Light Curtain System
  • Side and Back Safety Fence
  • Movable Foot Pedal with Estop meet OSHA safety standard


OPTIONAL ITEMS:

  • Custom Tooling, Made in the USA - CALL FOR QUOTE
  • Die adapter for single V bottom Die: $1,750.00
  • On-site training: $950.00 per day plus travel expenses
  • Available Step Down Transformers: 440V-480V to either 208V or 230V - Call for Price


Specifications

ManufacturerGMC Machine Tools
ModelHPB-13510CNC
ConditionNew
Stock NumberHPB-13510CNC
Maximum Pressure135 Tons
Bending length capacity126" (10'6")
Distance between uprights (housing)106"
Ram Stroke travel8"
Cylinder travel adjustment, max3-1/8"
Table Width9"
Distance between table and ram18-1/4"
Throat Depth:13-3/4"
Back Gauge Distance24"
Back Gauge Repeatability.0039"
Y Axis Repeatability.0039"
Approach speed, inch / second3.14"
Working speed , inch / second0.35"
Return speed , inch / second2.36"
Main Motor15 HP 208V or 220V, 3phase (please specify)
Servo motor for back gauge2 HP, 220V, 3-phase
Servo motor for bending angle setting1-1/2 HP, 220V, 3-phase
Hydraulic Oil Tank Capacity120 Gal.
Machine Weight19,350 lbs.
Machine size, L x W x H131" x 68" x 101”
