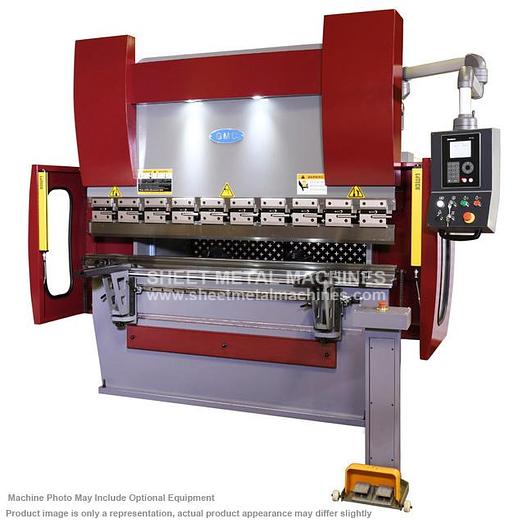

GMC 55 Ton Hydraulic Press Brake HPB-5505CNC

GMC 55 Ton Hydraulic Press Brake HPB-5505CNC

$26,495 IN STOCK NOW! READY TO SHIP!

orCall 386-304-3720

Description

  • ISO 9001 certified
  • Designed in US and Taiwan quality Machine
  • American Standard Punch Die and Bottom Vee die
  • Meet OSHA and CE safety standard
  • ESA 625, 2 Axis CNC back gauge Tool Library
  • Programmable Angle/ Angle Correct
  • Germany Rexroth hydraulic system
  • Yaskawa Servo motor and Drives
  • Schneider electrical components
  • All steel construction for maximum rigidity
  • Hydraulic logic system centrally located and quiet
  • Safety type foot pedal with handle and E-stop switch
  • Safety 24V low voltage & overload protection
  • One year industrial warranty for parts
  • Note: Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only


STANDARD EQUIPMENT:

  • ESA 625 Controller - Stores up to 2000 Programs, Punch /Dies Library , American Style Punch, Inside/Outside Backgauge Bend radius calcs, Servo Drives( 2 ) 24” front support arms on T slot movement
  • Quick release segmented punch holder
  • Full Length Gooseneck Punch HRC 50
  • Full Length Vee Die with 7 assorted sizes HRC 50
  • Lntech Light Curtain System
  • Side and Back Safety Fence
  • Movable Foot Pedal with Estop meet OSHA safety standard


OPTIONAL ITEMS:

  • Custom Tooling, Made in the USA - CALL FOR QUOTE
  • Die adapter for single V bottom Die: $1,750.00
  • On-site training: $950.00 per day plus travel expenses
  • Available Step Down Transformers: 440V-480V to either 208V or 230V - Call for Price


Specifications

ManufacturerGMC Machine Tools
ModelHPB-5505CNC
ConditionNew
Stock NumberHPB-5505CNC
Maximum Pressure55 Tons
Bending length capacity63” (5'3”)
Distance between uprights (housing)49-1/2"
Ram Stroke travel6"
Cylinder travel adjustment, max2-1/2"
Table Width6"
Distance between table and ram15"
Throat Depth:10"
Back Gauge Distance24"
Back Gauge Repeatability.0039"
Y Axis Repeatability.0039"
Approach speed, inch / second3.54"
Working speed , inch / second0.78"
Return speed , inch / second2.75"
Main Motor7-1/2 HP 208V or 220V, 3phase (please specify)
Servo motor for back gauge1 HP, 220V, 3-phase
Servo motor for bending angle setting1/2 HP, 220V, 3-phase
Hydraulic Oil Tank Capacity38 Gal.
Machine Weight7,150 lbs.
Machine size, L x W x H90" x 61" x 87”
