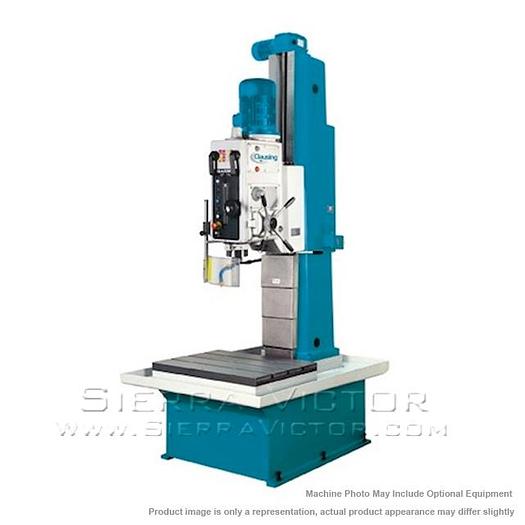

CLAUSING/IBARMIA Geared-Drive Prismatic Column Drills BP-50

CLAUSING/IBARMIA Geared-Drive Prismatic Column Drills BP-50

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ITEM: 1.97" Geared-Drive Prismatic Column Drills MANUFACTURER: CLAUSING/IBARMIA MODEL: SERIES P PART# BP-50 / BP-50L / BP-50RS / BP-50LRS

Specifications

ManufacturerClausing
ModelBP-50
ConditionNew
Stock NumberBP-50
Spindle taper4MT
Optional spindle taper (on request)ISO-40
Quill diameter3.46" (88mm)
Spindle travel (drilling depth)9.06" (230mm)
Main motor power5.5 Hp (4Kw)
Standard motor:
Coolant pump motor power.12 Hp (.09Kw)
Head geared-motor power1.5 Hp (1.1Kw)
Number of speed (see speed charts)9
Number of automatic feeds6
Auto feed range in./rev. (mm/rev.).0039/.0079/.118/.157/ .197/.236 (.1/.2/.3/.4/.5/.6)
Maximum drilling capacity in cast iron2.36" (60mm)
Maximum tapping capacity in steel1.65" (42mm)
Maximum tapping capacity in cast iron1.97" (50mm)
Base length (b)55.9"/58.6" (1420/1490mm)
Maximum39.4"/64.9" (1000/1650mm)
Spindle center to column (d)18.7" (475mm)
Maximum head height (e)108.3"/133.9" (2750/3400mm)
Worktable width (f)23.62" (600mm)
Worktable height (g)27.56" (700mm)
Worktable length (h)27.56" (700mm)
Overall width (i)39.37" (100mm)
Shipping dimensions (length x width x height)48" x 107"/130" x 79" (1.2 x 2.7/3.3 x 2m)
Shipping weight3,527 / 4,078 lbs (1600/1850Kg)
3,600132 - 2,510
900 / 1,80033 - 1,255
