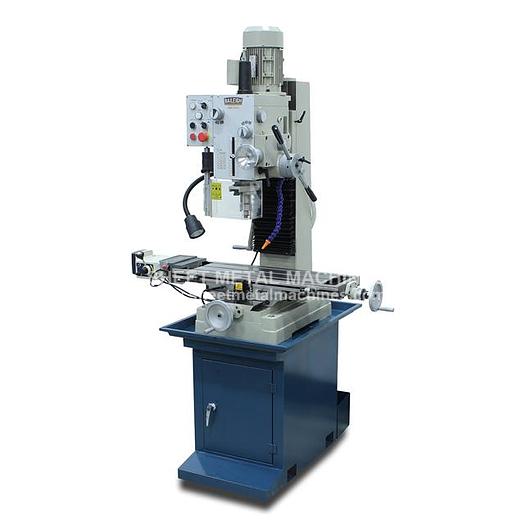

BAILEIGH Vertical Mill Drill VMD-931G

BAILEIGH Vertical Mill Drill VMD-931G
$5,419
Description
Please note: many products ship straight from manufacturer BAILEIGH Vertical Mill Drill VMD-931G Ever wish you had a milling table on your drill press? That’s why we came up with the VMD-931G mill drill combo machine. Unlike most milling machine-drill combinations, this multi-functional vertical mill drill lets you select the right speed to suit your application and cut down on tooling wear and tear.
- 2 hp motor runs on 110 volt single-phase power, optimal for any shop, garage, or educational institution.
- 1.75” maximum drilling capacity.
- 31.5” x 9.45” milling-style table enables you to tackle a wider variety of projects (with the right tooling).
- Table incorporates an X-axis power feed to make those longer cuts accurately.
- Gear-driven head swivels 90° left and right.
- You can choose from 6 speeds to accommodate each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Wide steel column eliminates flex when you’re milling or drilling at full capacity.
- Heavy-duty base, made from a rigid iron casting, adds to the machine’s strength and minimizes vibrations.
- Comes standard with a coolant system, R8 spindle taper, and a flexible halogen light.
- This drill press mill is covered by a 1-year warranty and lifetime technical support by phone from our team of knowledgeable reps.
Recommended for: Milling, drilling, tapping, and boring.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | Baileigh Industrial |
Model | VMD-931G |
Condition | New |
Stock Number | VMD-931G |
Table size | 31.5" x 9.45" |
Head miter | 90º Left and Right |
Motor | 2 HP |
X axis travel | 22" |
Y axis travel | 7.48" |
Spindle nose to table | 17.32" |
Spindle speed | 90,210,345,670,1180,1970 RPM |
Spindle stroke | 4.75" |
Spindle taper | R8 |
T slots | .55" |
Coolant pump | 1/8 hp |
End mill size | 1.25" Max |
Power | 110V |
Drill capacity | 1.5" |
Spindle travel | 4.75" |
Shipping dimensions | 69” x 44” 70” |
Shipping weight | 710 lbs. |
