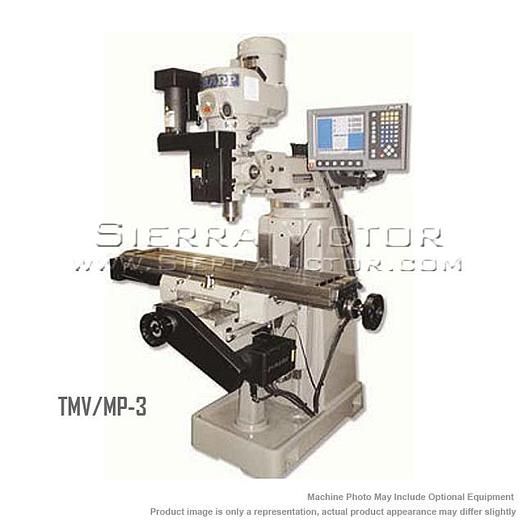

SHARP CNC Knee Mill with 3-Axis ACU-RITE MILLPWR TMV/MP-3

SHARP CNC Knee Mill with 3-Axis ACU-RITE MILLPWR TMV/MP-3

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer SHARP CNC Knee Mill with 3-Axis ACU-RITE MILLPWR TMV/MP-3 3 axis (X,Y, quill ) CNC Knee Mill with ACU-RITE MILLPWR control Model TMV/MP-3: 10” x 50” table, 15.5” x 31” travel, 3 HP, R-8, vari speed SHARP milling machines are constructed from certified MEEHANITE castings that provides high rigidity and excellent vibration dampening characteristics. The models are equipped with hard chromed dovetail ways or hardened and ground box ways for superior wear resistance . For almost 30 years, the SHARP mills have been one of the most reliable mills in the industry. A PC-based controlled 3 axis (table, saddle and quill) CNC vertical knee mill. The MIL PWR System by Acu-Rite has a highly user-friendly conversational programming format that is powerful enough to handle any job and easy enough for anyone to operate. The system can be used as a full function digital readout, as a programmable CNC control, or both. MILL

Specifications

ManufacturerSharp
ModelTMV/MP-3
ConditionNew
Stock NumberTMV/MP-3
T-slot number, size3, 5/8"
Ram travel18.5"
Quill travel (z-axis)5"
Knee travel15.3"
Spindle to column9.8” - 28.3"
Spindle to nose to table1-1/2” - 17”
Wiring voltage220/440v, 3 phase, 60 Hz
TaperR-8
Speed (vari-speed)60-4,500 RPM
Quill feed (ipr)0.0015”, 0.003”, 0.005"
Head swivel360°
Head tilt; right-to-left (each way)45°
Head tilt up-and-down (each way)45°
Approx. net weight3,650 lbs.
