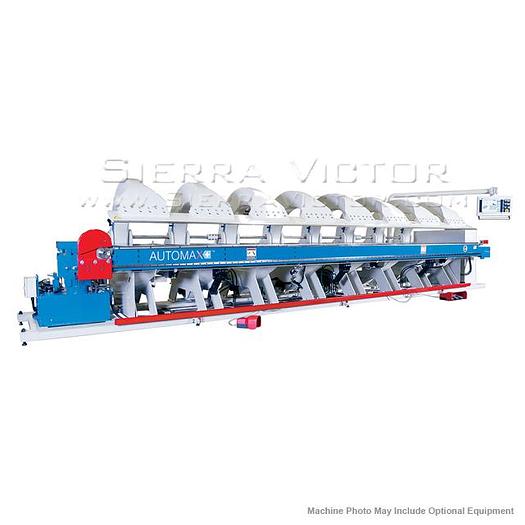

ROPER WHITNEY AUTOMAX PLUS Long Folding Machine

ROPER WHITNEY AUTOMAX PLUS Long Folding Machine

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ROPER WHITNEY AUTOMAX PLUS Long Folding Machine The AutoMax Plus offers all of the same features and functions of the standard AutoMax, in addition to providing increased capacity. With the most versatility, the AutoMax Plus bends material up to 14 gauge. This sheet metal brake has additional free space on the inside of the machines which allows for larger flanges to be put inside of the machine while forming the opposite side. The AutoMax Plus combines automated bending of angles up to 145 degrees, material clamping, and material support into a single CNC controlled system employing wing bending techniques. The AutoMax Plus is a solid plate and weldment designed machine, delivering superior performance and features. The unique round design of the C frame gives this machine an extremely rigid foundation. The AutoMax Plus AMP2114 has eight C frames where competitive machines only have five.

Specifications

ManufacturerRoper Whitney
ModelAUTOMAX PLUS
ConditionNew
Stock NumberAUTOMAX PLUS
Bending length21.3’ / 6.5 mm
Maximum bending capacity (mild steel)14 ga / 2.0 mm
Maximum bending capacity (stainless steel)16 ga / 1,6 mm
Maximum bending capacity (aluminum)1/8 in / 3,0 mm
Maximum slitting capacity (mild steel)14 ga/ 2.0 mm
Back gauge travel49 in / 1250 mm
Number of back gauge fingers (standard)5
Minimum back gauge distance (gripping)0.787" / 20 mm
Minimum back gauge distance (pushing)0.394" / 10 mm
Number of c frames8
Number of bending cylinders3
Width of folding beam0.394 in / 10 mm 1 in / 25 mm with reinforcement bar
Folding beam maximum bend145°
Standard clamping rail35°
Slitter offset from bending point2.5" / 70 mm
Hydraulic motor10 Hp
Pneumatic supply6 bar/ 1 CFM
