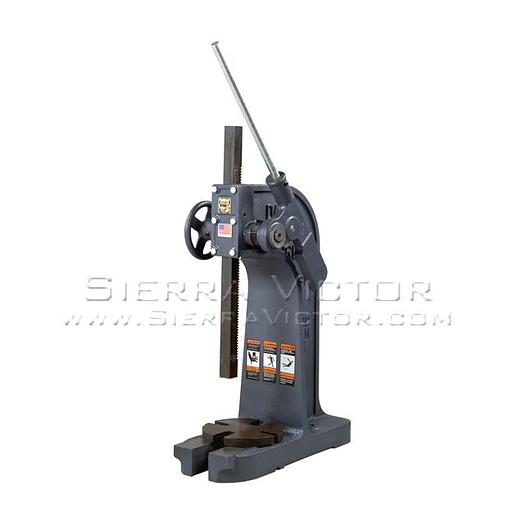

DAKE Broaching Ratchet Leverage Arbor Press MODEL 1 1/2B

DAKE Broaching Ratchet Leverage Arbor Press MODEL 1 1/2B


orCall 386-304-3720


Please note: many products ship straight from manufacturer DAKE Ratchet Leverage Arbor Press MODEL 1-1/2B ITEM: 3 Ton Ratchet Leverage Arbor Press MANUFACTURER: DAKE MODEL: 1 1/2B PART# 902002 3 ton ratchet lever arbor press that is designed for broaching. An optional pedestal is available. Ratchet device permits lever to be used in most convenient position. Counterweight returns lever quickly after downstroke. Handwheel advanced ram to work quickly. STANDARD EQUIPMENT: Cast Iron Base Handwheel Ram Notched Table Plate Counter weight OPTIONAL ITEMS: 903002: Pedestal for Model 1-1/2B: $668.31


Stock Number902002
Capacity3 Tons
Leverage ratio48:1
Ram size1-1/4" x 1-1/4" x 24-1/2"
Maximum diameter work14"
Largest arbor2"
Capacity over table18-1/4"
Capacity over table plate17-1/2"
Base length21"
Base width8-1/4"
Weight196 lbs.
