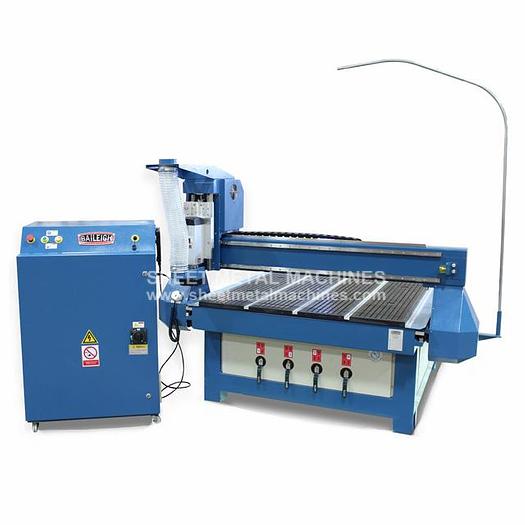

BAILEIGH CNC Routing Table WR-84V

BAILEIGH CNC Routing Table WR-84V

$21,310

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer With a welded steel frame, the WR-84V industrial wood router is built to last. Unlike many competing tables, this 4x8 CNC router table ships fully assembled and comes with software, tooling, and a dust shroud.
  • 4’ x 8’ table to fit common bulk industrial material sizes.
  • Perfect for solid wood processing, making closet doors, furniture, signs, and much more.
  • 0 to 18,000 rpm variable spindle speed range.
  • 7.4 hp spindle has the power to cut hardwoods quickly and precisely.
  • Spindle is air-cooled to prevent overheating, prolong the machine’s lifespan, keep it producing high-quality cuts.
  • 15,000 mm per minute maximum engraving or travel speed.
  • Solid steel gantry can tackle hardwoods at high speeds without flinching.
  • Stepper motors with square rails ensure smooth movement along the X, Y, and Z axes.
  • Use the handheld digital controller to move the spindle, adjust the speed, and go through your design.
  • Comes standard with software that allows you to set up almost any kind of design. (Details below.)
  • Upload your cut pattern to the table with a USB drive.
  • Rack and pinion mechanism holds up over long periods of heavy use and allows for more fluid and precise movement than a ball and screw mechanism.
  • 4 collets accept any standard tooling profiles with ⅛”, ¼”, 3/8", and ½” bit sizes.
  • Includes 10 different tooling profiles.
  • Steel T-clamps hold the material down on the table to reduce vibrations and prevent errors.
  • Table is preplummed 4 vacuum zones, each with a separate valve and handle, ready to accept optional 7hp vacuum pump.
  • Extremely rigid steel structure reduces vibrations and helps the table stay accurate for years.
  • Dust shroud covers the spindle and vacuums out sawdust and wood chips while you’re cutting.
  • Covered by a 1-year parts warranty.
  • Lifetime technical support by phone: Call up Baileigh’s team of reps, all with hands-on machine experience, whenever you need help.
  • BobCAD-Cam Express Design Software (Included)
  • The WR-48 comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the table via a USB drive.


Specifications

ManufacturerBaileigh Industrial
ModelWR-84V
ConditionNew
Stock NumberWR-84V
Actual working area97" x 48"
Spindle7.4HP
Z axis stroke5.375"
Maximum moving speed (inches per minute)590
Maximum engraving speed (inches per minute)590
Reposition accuracy0.0019
Tool diametersER32
Power220V Single Phase
Length118"
Width78"
Height65"
Table styleT-Slot with Vacuum Option
NotesTable comes ready to accept an optional vacuum pump. Pump must be purchased separately.
Amp draw35 at full load
Shipping dimensions124" x 86" x 70"
Weight2,500 lbs.
Shipping weight3,000 lbs.
