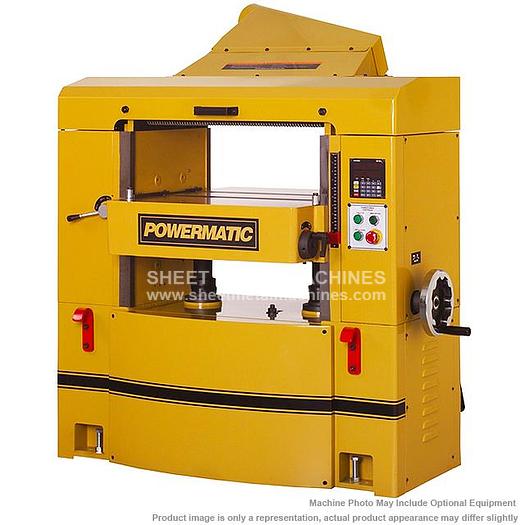

POWERMATIC WP2510 Planer, 15HP 3Ph 230/460V Helical Head, PM9-1791303

The POWERMATIC WP2510 Planer has a solid steel helical cutterhead with four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. The planer's segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4. Its automatically adjusting, chain drive gear box powers the 3" diameter infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily. The WP2510 Planer has a large 32-3/16" x 26" precision-ground table which contains two adjustable

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)


Stock NumberPM9-1791303
Type of cutterheadHelical
Knife size (l x w x t)(in.)15 x 15 x 2.5
Cutterhead speed (rpm)5,000
Cutterhead diameter (in.)3-3/8
Cuts per minute30,000
Number of knives174 Four-Sided Inserts
Maximum depth of cut (in.)1/4
Maximum full width depth of cut (in.)1/8
Maximum planing width (in.)25
Maximum planing thickness (in.)auto 9/manual 10
Minimum planing length (in.)10
Feed rate (fpm)20/25/30
Segmented infeed roller diameter (in.)3
Outfeed roller diameter (in.)3
Bed rollers adjustable from front0 - 0.05
Maximum height of rollers parallel to tabletop (in.)0.05
Table size (l x w) (in.)32-3/16 x 26
Table support2 Column
Column diameter (in.)2-1/2
Digital readoutInch / Metric
Dust collection minimum cfm required (cfm)600
Dust port outside diameter (in.)5
Motor power (hp)15
Motor phase3
Motor voltage (v.)230/460
Prewired voltage (v.)230
Motor current (amps)37/18.5
Recommended circuit size (amps.)50/25
