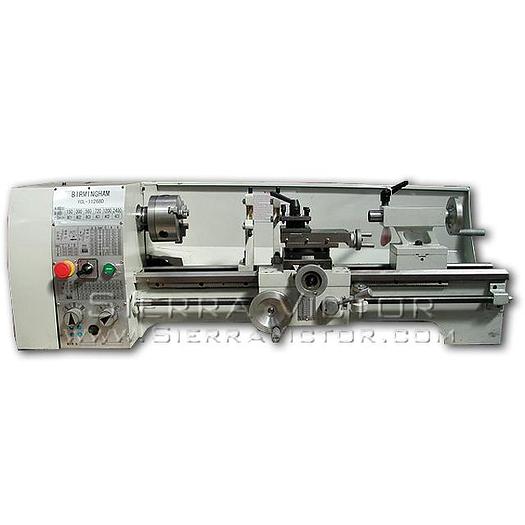

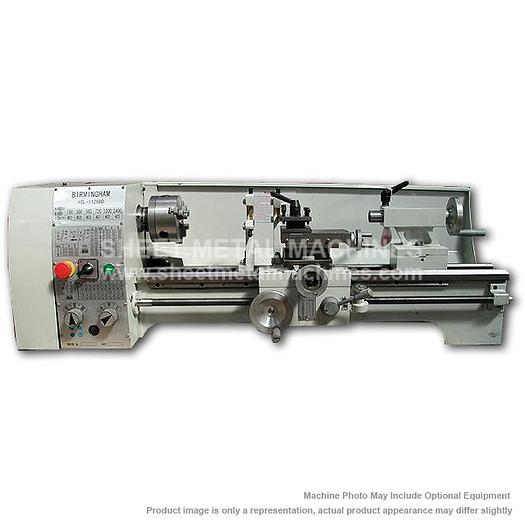

BIRMINGHAM Bench Lathe YCL-1126BD
BIRMINGHAM Bench Lathe YCL-1126BD
Contact us for price
Description
Please note: many products ship straight from manufacturer BIRMINGHAM 11" x 26" Bench Lathe YCL-1126BD 11" x 26"
OPTIONAL ITEMS:
Stand - CALL FOR PRICE
Specifications
| Manufacturer | Birmingham |
| Model | YCL-1126BD |
| Condition | New |
| Stock Number | YCL-1126BD |
| Swing over cross slide | 6" (156mm) or 7" (182mm) |
| Distance between centers | 22" (550mm) or 26" (660mm) |
| Spindle nose | M or C-3 |
| Taper in spindle hole | MT4 |
| Number of spindle speeds | 6 |
| Range of spindle speeds | 125-2000 rpm (50Hz) 150-2400 rpm (60Hz) |
| Range of longitudinal feeds | 0.0025"-0.013"/rev (0.063-0.350mm/rev) |
| Number of inch threads | 32 |
| Range of inch threads | 8-72 T.P.I. |
| Number of metric threads | 18 |
| Range of metric threads | 0.25-3.5mm |
| Maximum tool size | 1/2" x 1/2" (12mm x 12mm) |
| Maximum compound size travel | 3-3/4" (95mm) |
| Maximum cross size travel | 5-1/2" (145mm) |
| Diameter of tailstock spindle | 1-1/4" (32mm) |
| Taper in tailstock spindle | MT2 or MT3 |
| Follow rest capacity | 1/4" - 2" (6.35mm-50mm) |
| Length of bed | 41-1/4" (1050mm) or 46" (1150mm) |
| Width of bed | 6" (155mm) |
| Height of bed | 8" (200mm) |
| Packing size | 55" x 22-7/16" x 22-1/4" or 56" x 22-7/16" x 24-3/4" |
| Main motor | 1 HP (750W), 1ph, 110V |
